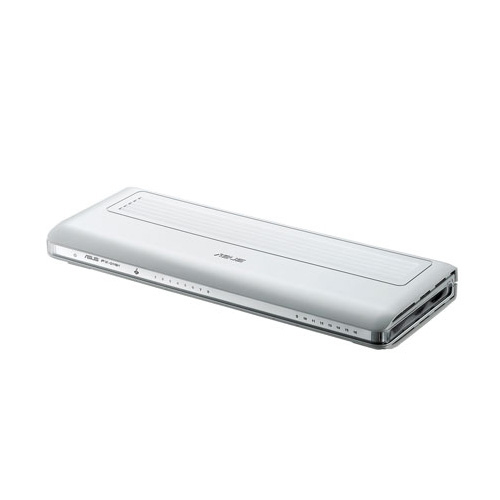

ASUS GigaX 1005B
Model GigaX 1005BPart no. 90-Q862AN1N0N3MA0EAN 610839966127
18 specifications
- Speed0.1 Gbit/s
- Weight164 g
- ColourWhite
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- Networking standardsIEEE 802.3u, IEEE 802.3x
Overview
- Speed
- 0.1 Gbit/s
- Weight
- 164 g
- Colour
- White
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Networking standards
- IEEE 802.3u, IEEE 802.3x
- Brand
- ASUS
- Category
- Network Switch
- Model
- GigaX 1005B
- Part number
- 90-Q862AN1N0N3MA0
- EAN / UPC
- 610839966127, 5711045147968
- Also known as
- ASUS GigaX 1005B Unmanaged White
Specifications
18 specifications in 9 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1024 entries |
| Supported data transfer rates | 10/100 Mbps |
| Maximum data transfer rate | 0.1 Gbit/s |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Safety | UL1950, TUV |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 135 x 91 x 36 mm |
| Power requirements | AC 230V, 50Hz |
| Connectivity LEDs | Yes |
| Electromagnetic emissions | FCC Part 15 Class B, CE Mark, VCCI C-Tick, MIC, CCC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 164 g |
