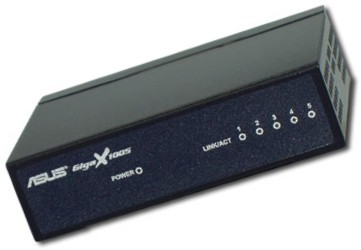

GigaX 1005
Model GigaX 1005Part no. 90-Q651GN1NNAM30EAN 610839908295
16 specifications
- Speed0.1 Gbit/s
- Weight200 g
- Basic switching RJ-45 Ethernet ports quantity5
- Networking standardsIEEE 802.3u, IEEE 802.3x
- MAC address table1000 entries
- Data link protocolsEthernet, Fast Ethernet
Overview
- Speed
- 0.1 Gbit/s
- Weight
- 200 g
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Networking standards
- IEEE 802.3u, IEEE 802.3x
- MAC address table
- 1000 entries
- Data link protocols
- Ethernet, Fast Ethernet
- Brand
- ASUS
- Category
- Network Switch
- Model
- GigaX 1005
- Part numbers
- 90-Q651GN1NNAM30, 90Q651GN1NNAM31
- EAN / UPC
- 610839908295
- Also known as
- ASUS GigaX 1005
Specifications
16 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 100Base-TX, 10Base-T |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Switching capacity | 1 Gbit/s |
| Maximum data transfer rate | 0.1 Gbit/s |
Protocols
| Specification | Value |
|---|---|
| Data link protocols | Ethernet, Fast Ethernet |
Design
| Specification | Value |
|---|---|
| Safety | UL1950, TUV |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 100 Mbit/s |
| Dimensions (WxDxH) | 92 x 67 x 24 mm |
| Electromagnetic emissions | FCC Part 15 Class B, CE Mark, VCCI, C-Tick, MIC, CCC |
| I/O ports | 5x Ethernet (Auto MDI/MDIX) ports 1x Power Adapter port |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 200 g |
