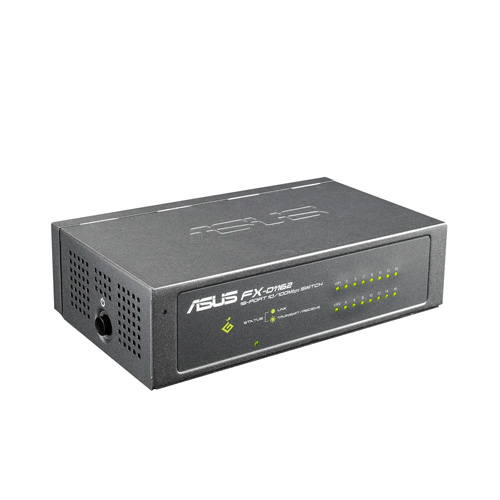

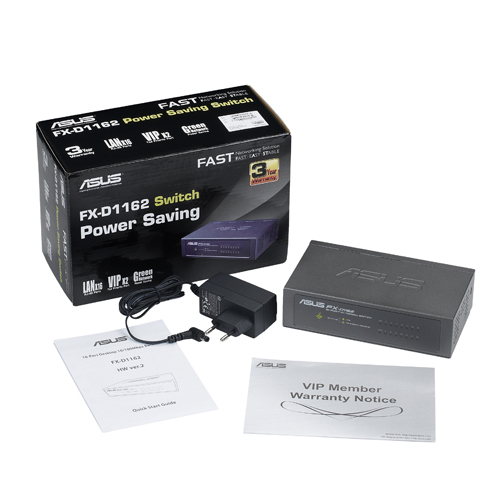

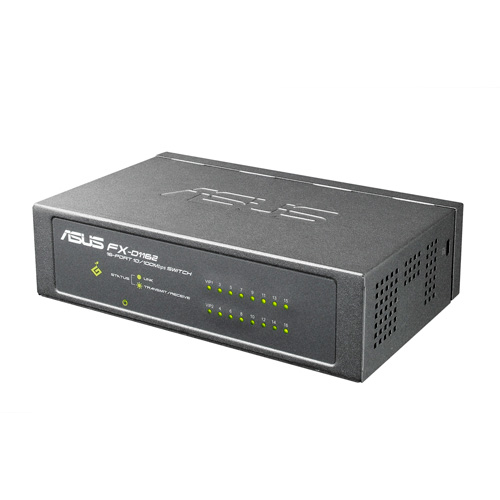

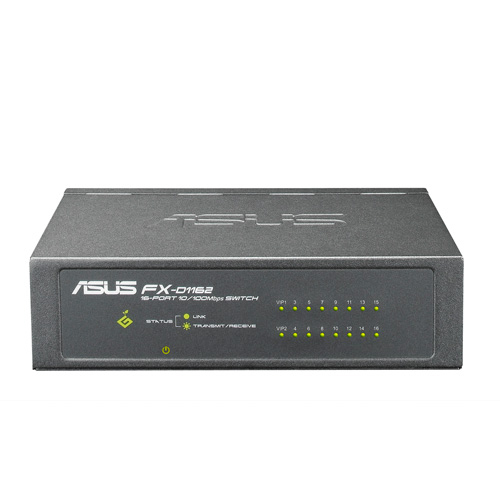

ASUS FX-D1162 V2
Model FX-D1162 V2Part no. 90-QB632AN1N0N3MA0EAN 4716659021575
31 specifications
- Speed3.2 Gbit/s
- ConnectivityWired
- Weight450 g
- ColourGrey
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
Overview
- Speed
- 3.2 Gbit/s
- Connectivity
- Wired
- Weight
- 450 g
- Colour
- Grey
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- Brand
- ASUS
- Category
- Network Switch
- Model
- FX-D1162 V2
- Part number
- 90-QB632AN1N0N3MA0
- EAN / UPC
- 4716659021575
- Also known as
- ASUS FX-D1162 V2 Grey
Specifications
31 specifications in 9 groups

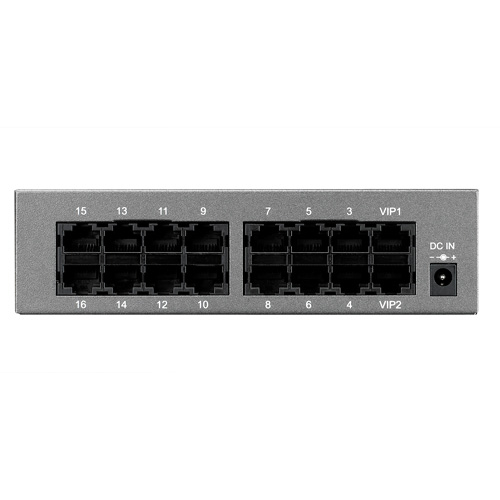

Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Maximum data transfer rate | 3.2 Gbit/s |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| LED indicators | LAN |
| Safety | LVD |
Power
| Specification | Value |
|---|---|
| DC input voltage | 12 V |
| Input current | 0.5 A |
| Output power | 4.3 W |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 32 - 104 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 90 mm |
| Height | 43.5 mm |
| Weight | 450 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
What people say
Reviews & ratings
ASUS FX-D1162 V2
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS FX-D1162 V2
All network switch comparisons- ASUS FX-D1162 V2 vsASUS GX1024X V3Compare specs
- ASUS FX-D1162 V2 vsASUS GX-D1241 V2Compare specs
- ASUS FX-D1162 V2 vsASUS GX-D1081 V2Compare specs

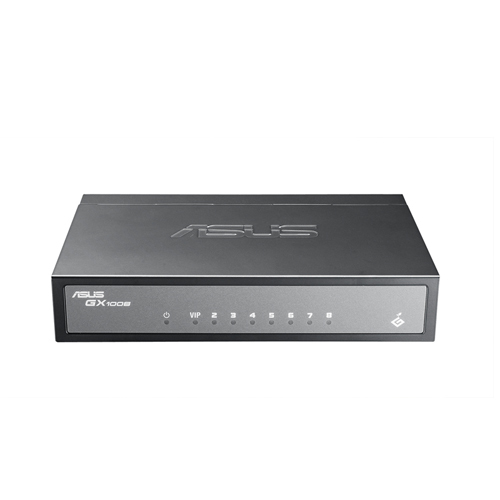

- ASUS FX-D1162 V2 vsASUS GX1008 V3Compare specs
