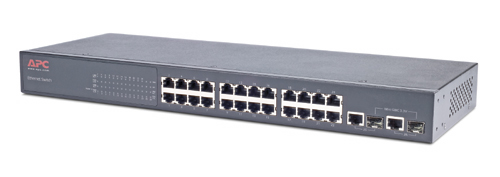

24 Port 10/100 Ethernet Switch with 2 Gig Uplink
Model 24 Port 10/100 Ethernet Switch with 2 Gig UplinkPart no. AP9224111EAN 7313042266116
15 specifications
- Speed0.1 Gbit/s
- Weight2.09 kg
- Basic switching RJ-45 Ethernet ports quantity24
- MAC address table8000 entries
- Management protocolsIEC-320 C14
- Operating temperature (T-T)0 - 45 °C
Overview
- Speed
- 0.1 Gbit/s
- Weight
- 2.09 kg
- Basic switching RJ-45 Ethernet ports quantity
- 24
- MAC address table
- 8000 entries
- Management protocols
- IEC-320 C14
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- APC
- Category
- Network Switch
- Model
- 24 Port 10/100 Ethernet Switch with 2 Gig Uplink
- Part number
- AP9224111
- EAN / UPC
- 7313042266116
- Also known as
- APC 24 Port 10/100 Ethernet Switch with 2 Gig Uplink
Specifications
15 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3U, IEEE 802.3x |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Maximum data transfer rate | 0.1 Gbit/s |
Protocols
| Specification | Value |
|---|---|
| Management protocols | IEC-320 C14 |
Design
| Specification | Value |
|---|---|
| Compatible products | cUL Listed,CE,EN 60950,FCC Part 15 Class A,TUV,UL Listed |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 162 x 44 mm |
| I/O ports | 24 x Ethernet 10Base-T, Ethernet 100Base-TX 2 x 1000Base-T/SFP (mini-GBIC)(uplink) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -15 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.09 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 521 x 318 x 102 mm |
| Package weight | 2.93 kg |
