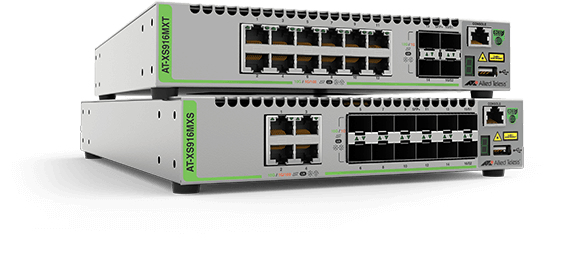

XS916MXT Managed L3
10G Ethernet (100/1000/10000) 1U Grey
Model XS916MXTPart no. XS916MXT-10
63 specifications
- Noise42 dB
- Type1U
- Weight2.7 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity12
Overview
- Noise
- 42 dB
- Type
- 1U
- Weight
- 2.7 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 12
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- XS916MXT
- Part number
- XS916MXT-10
- Also known as
- Allied Telesis XS916MXT Managed L3 10G Ethernet (100/1000/10000) 1U Grey
Specifications
63 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Traffic classification | Yes |
| System event log | Yes |
| MIB support | SNMP |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
Optical fiber
| Specification | Value |
|---|---|
| Switching optical modules type | 40 Gigabit Ethernet |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 320 Gbit/s |
| Throughput | 238 Mpps |
| Number of queues | 8 |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | MAC-based authentication |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | Metal |
Performance
| Specification | Value |
|---|---|
| Flash memory | 96 MB |
| Noise level | 42 dB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 270 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 323 mm |
| Depth | 210 mm |
| Height | 43 mm |
| Weight | 2.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 330 mm |
| Package depth | 400 mm |
| Package height | 150 mm |
| Package weight | 4.5 kg |
