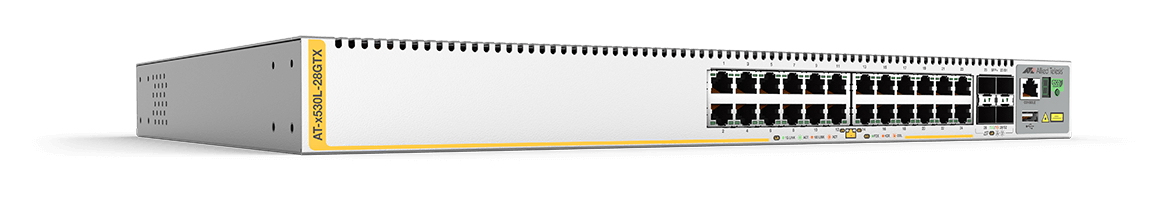

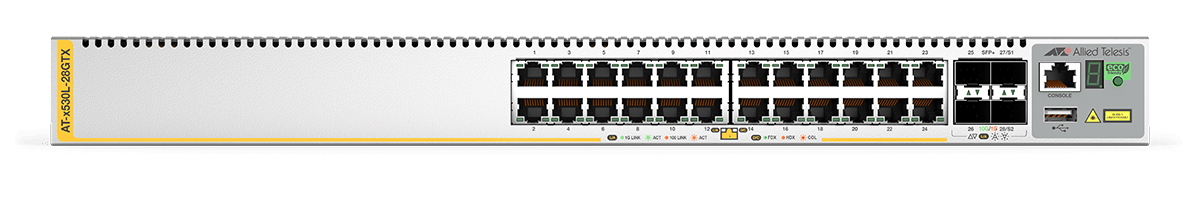

X530L-28GTX Managed L2/L4 Gigabit Ethernet (10/100/1000) Stainless steel
Model X530L-28GTXPart no. X530L-28GTX-10
80 specifications
- Memory1024 MB
- Noise42 dB
- Weight4.4 kg
- ColourStainless steel
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Memory
- 1024 MB
- Noise
- 42 dB
- Weight
- 4.4 kg
- Colour
- Stainless steel
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- X530L-28GTX
- Part number
- X530L-28GTX-10
- Also known as
- Allied Telesis X530L-28GTX Managed L2/L4 Gigabit Ethernet (10/100/1000) Stainless steel
Specifications
80 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L4 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Traffic classification | Yes |
| System event log | Yes |
| MIB support | Comprehensive SNMP |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 1000BASE-TX |
| Port mirroring | Yes |
| Full duplex | Yes |
| Policy-based routing | Yes |
| Auto-negotiation | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Protocol-based VLAN, Tagged VLAN |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.2 Mpps |
| Latency (10-100 Mbps) | 29.91 µs |
| Latency (1 Gbps) | 3.98 µs |
| Latency (10 Gbps) | 1.63 µs |
| Number of queues | 8 |
| Static route | Yes |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCPv6 client, DHCPv6 relay |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication |
| Authentication type | IEEE 802.1x, Network Access Control (NAC), RADIUS |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| SSH/SSL support | Yes |
| Security algorithms | 3DES, AES, DES, SHA-1, SHA-2, SHA-256, SNMP, SNMPv2, SNMPv3, SSH, SSH-2 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast features | Multicast forwarding |
| Multicast Listener Discovery (MLD) snooping | MLDv1, MLDv2 |
Protocols
| Specification | Value |
|---|---|
| Routing protocols | RIP, RIP-2, RIPng |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 Telnet |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Stainless steel |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Noise level | 42 dB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |

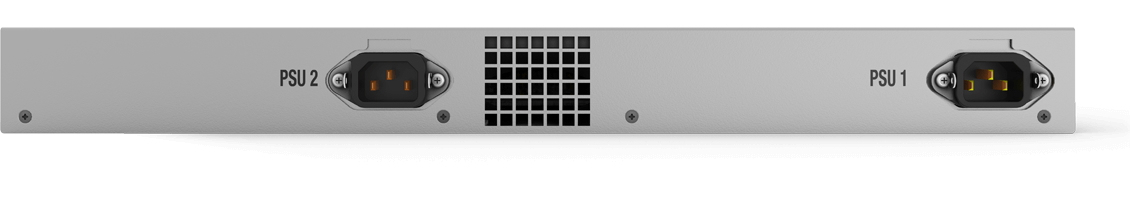

| Number of power supply units | 2 |
| Power consumption (max) | 39 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 323 mm |
| Height | 44 mm |
| Weight | 4.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 577 mm |
| Package depth | 440 mm |
| Package height | 153 mm |
| Package weight | 6.3 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | EN55032 class A, FCC class A, VCCI class A, ICES-003 class A, EN55024, EN61000-3, UL, cUL, UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1, RoHS |
