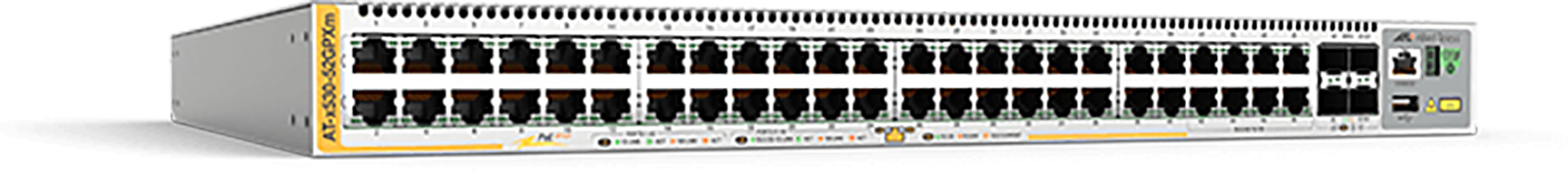

x530-52GPXm Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Model x530-52GPXmPart no. AT-X530-52GPXM-50EAN 767035217321
64 specifications
- Memory1024 MB
- Weight6.9 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity40
- 10G supportYes
Overview
- Memory
- 1024 MB
- Weight
- 6.9 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 40
- 10G support
- Yes
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- x530-52GPXm
- Part number
- AT-X530-52GPXM-50
- EAN / UPC
- 767035217321, 7670352173214
- Also known as
- Allied Telesis x530-52GPXm Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Specifications
64 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 40 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 100BASE-X, 1000BASE-X |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 240 Gbit/s |
| Forwarding rate | 179 Mpps |
| Latency (10-100 Mbps) | 7.42 µs |
| Latency (1 Gbps) | 4.1 µs |
| Latency (10 Gbps) | 1.68 µs |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP snooping, DHCPv6 client, DHCPv6 relay |
| Access Control List (ACL) | Yes |
| Authentication | MAC-based authentication, Web-based authentication |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, MD5, SHA-1, SHA-2, SHA-256 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Routing protocols | BGP, OSPF, RIP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Grey |
| Electromagnetic compatibility | EN55032 A, FCC A, VCCI A, ICES-003 A |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Power consumption (max) | 88 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 300 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 421 mm |
| Height | 44 mm |
| Weight | 6.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 563 mm |
| Package depth | 632 mm |
| Package height | 128 mm |
| Package weight | 8.9 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | EN55024, EN61000-3 UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL RoHS |
