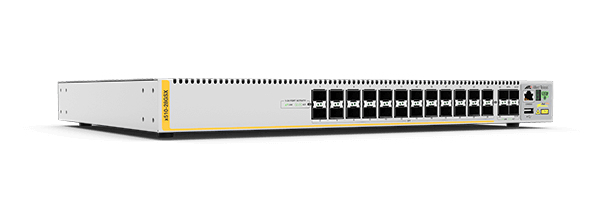

Allied Telesis x510-28GSX Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Silver
Model x510-28GSXPart no. AT-X510-28GPX-10EAN 767035197821
36 specifications
- Noise45 dB
- Weight5.8 kg
- ColourSilver
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- VLAN supportYes
Overview
- Noise
- 45 dB
- Weight
- 5.8 kg
- Colour
- Silver
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- VLAN support
- Yes
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- x510-28GSX
- Part number
- AT-X510-28GPX-10
- EAN / UPC
- 767035197821, 7670351978216
- Also known as
- Allied Telesis x510-28GSX Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Silver
Specifications
36 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Virtual LAN features | Multicast VLAN |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.2 Mpps |
| Latency (10-100 Mbps) | 65 µs |
| Latency (1 Gbps) | 3.9 µs |
| Latency (10 Gbps) | 3 µs |
Protocols
| Specification | Value |
|---|---|
| Routing protocols | BGP, OSPF |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Silver |
| LED indicators | VoIP |
Performance
| Specification | Value |
|---|---|
| Noise level | 45 dB |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 67 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 530 W |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 229 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 400 mm |
| Depth | 400 mm |
| Height | 44 mm |
| Weight | 5.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 570 mm |
| Package depth | 510 mm |
| Package height | 150 mm |
| Package weight | 7.8 kg |
What people say
Reviews & ratings
Allied Telesis x510-28GSX Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Silver
No reviews yet
Be the first to tell others how Allied Telesis x510-28GSX Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Silver works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Allied Telesis x510-28GSX Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Silver
All network switch comparisons- Allied Telesis x510-28GSX Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Silver vsAllied Telesis AT-DC2552XS network switch Managed L3 1U GreyCompare specs
- Allied Telesis x510-28GSX Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Silver vsAllied Telesis AT-X510-28GSX-10 network switch Managed L3 Gigabit Ethernet (10/100/1000) GreyCompare specs
- Allied Telesis x510-28GSX Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Silver vsAllied Telesis AT-x210-9GT-50 Managed L2+ Gigabit Ethernet (10/100/1000) GreyCompare specs
- Allied Telesis x510-28GSX Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Silver vsAllied Telesis AT-x210-16GT-50 Managed L2+ Gigabit Ethernet (10/100/1000) GreyCompare specs

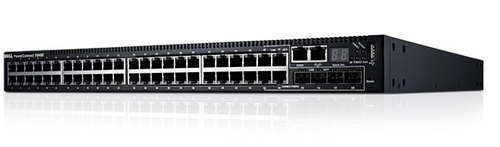

- Allied Telesis x510-28GSX Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Silver vsDell PowerConnect 7048R-RA Managed L3 Gigabit Ethernet (10/100/1000) 1U BlackCompare specs

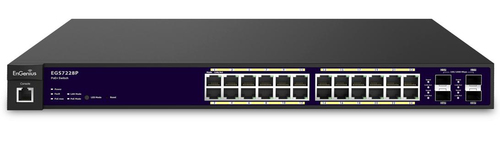

- Allied Telesis x510-28GSX Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Silver vsEnGenius EGS7228P network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, BlueCompare specs
