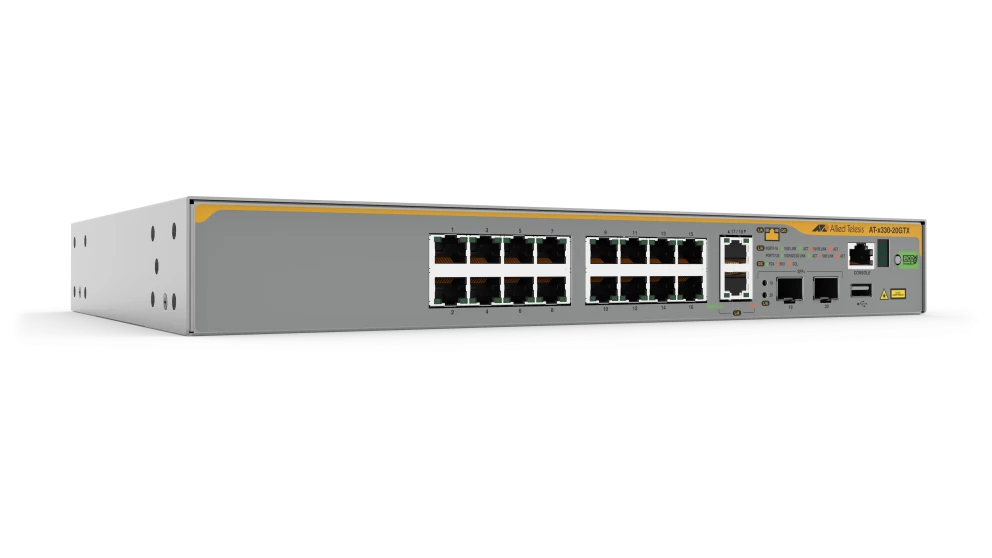

X330-20GTX Managed L2
10G Ethernet (100/1000/10000) 1U Grey
Model X330-20GTXPart no. AT-X330-20GTX-40
59 specifications
- Memory1000 MB
- Type1U
- Weight3 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity16
Overview
- Memory
- 1000 MB
- Type
- 1U
- Weight
- 3 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- X330-20GTX
- Part number
- AT-X330-20GTX-40
- Also known as
- Allied Telesis X330-20GTX Managed L2 10G Ethernet (100/1000/10000) 1U Grey
Specifications
59 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Traffic classification | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| 10G Ethernet (copper) ports quantity | 2 |
| SFP+ module slots quantity | 2 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Voice VLAN |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 72 Gbit/s |
| Forwarding rate | 83.3 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP snooping |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| Security algorithms | 3DES, AES, RSA, SHA-1, SHA-2, SHA-256, SHA-384, SHA-512 |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | RIP, RIP-2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR3-SDRAM |
| Internal memory | 1000 MB |
| Flash memory | 256 MB |
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 28 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 341 mm |
| Depth | 231 mm |
| Height | 44 mm |
| Weight | 3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 530 mm |
| Package depth | 360 mm |
| Package height | 120 mm |
| Package weight | 4.42 kg |
