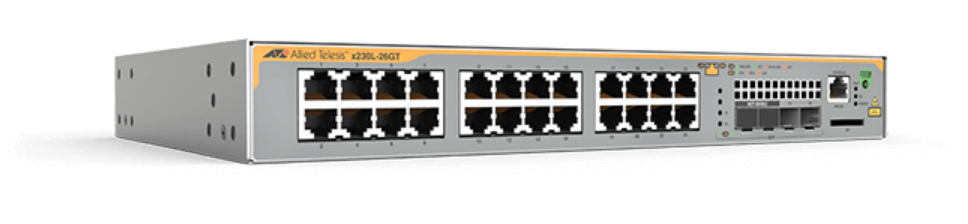

x230L-26GT Managed L3 Gigabit Ethernet (10/100/1000) Grey
Model x230L-26GTPart no. AT-X230L-26GT-40
74 specifications
- Memory512 MB
- Weight2.4 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Memory
- 512 MB
- Weight
- 2.4 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- x230L-26GT
- Part number
- AT-X230L-26GT-40
- Also known as
- Allied Telesis x230L-26GT Managed L3 Gigabit Ethernet (10/100/1000) Grey
Specifications
74 specifications in 17 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Traffic classification | Yes |
| System event log | Yes |
| MIB support | SNMP |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Fiber optic connector | SFP |
| Compatible memory cards | SD, SDHC |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Voice VLAN |
| Number of VLANs | 4094 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 100BASE-BX, 100BASE-FX, 100BASE-X, 1000BASE-X, 1000BASE‑LX, 1000BASE‑SX, 1000BASE‑ZX |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 52 Gbit/s |
| Forwarding rate | 38.7 Mpps |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Web-based authentication |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 3DES, AES, SHA-1, SHA-2, SHA-256, SNMP, SSH |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast MAC address table | 512 entries |
Protocols
| Specification | Value |
|---|---|
| Routing protocols | RIP |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Number of fans | 0 fan(s) |
| Electromagnetic compatibility | EN55022 A, FCC A, VCCI A |
Performance
| Specification | Value |
|---|---|
| Physical stacking (units) | 24 |
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 64 MB |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 20.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2000 m |
| Heat dissipation | 70 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 341 mm |
| Depth | 231 mm |
| Height | 44 mm |
| Weight | 2.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 435 mm |
| Package depth | 360 mm |
| Package height | 150 mm |
| Package weight | 4 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, cUL, UL-EU |
