1000) Grey

Model X230L-17GTPart no. AT-X230L-17GT

75 specifications

Memory512 MB
Weight2.2 kg
ColourGrey
Switch layerL3
Basic switching RJ-45 Ethernet ports quantity16
10G supportNo

See all specifications

Overview

Memory: 512 MB
Weight: 2.2 kg
Colour: Grey
Switch layer: L3
Basic switching RJ-45 Ethernet ports quantity: 16
10G support: No

Brand: Allied Telesis
Category: Network Switch
Model: X230L-17GT
Part number: AT-X230L-17GT

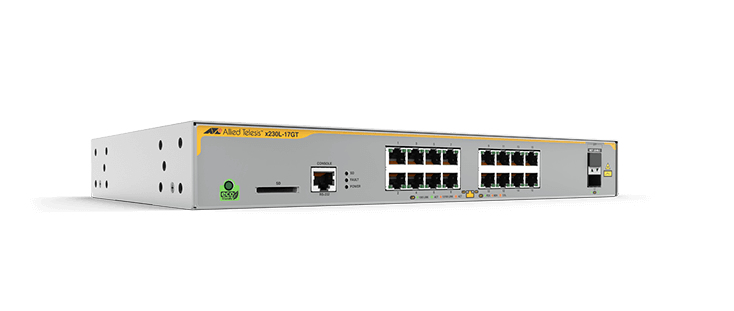

Also known as: Allied Telesis X230L-17GT L3 Gigabit Ethernet (10/100/1000) Grey

Specifications

75 specifications in 17 groups

Management features

Specification	Value
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
Traffic classification	Yes
System event log	Yes
MIB support	SNMP

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	1
Fiber optic connector	SFP
Compatible memory cards	SD, SDHC

Network

Specification	Value
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	1000BASE-T
Port mirroring	Yes
Full duplex	Yes
IP routing	Yes
Flow control support	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN, Voice VLAN
Number of VLANs	4094

Optical fiber

Specification	Value
Fiber ethernet cabling technology	100BASE-BX, 100BASE-FX, 100BASE-X, 1000BASE-X, 1000BASE‑LX, 1000BASE‑SX, 1000BASE‑ZX

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	34 Gbit/s
Forwarding rate	25.3 Mpps
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	1.5 MB

Security

Specification	Value
DHCP features	DHCP snooping, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	Guest VLAN, MAC-based authentication, Web-based authentication
BPDU filtering/protection	Yes
Loop protection	Yes
MAC address filtering	Yes
Password protection	Yes
Root protection	Yes
SSH/SSL support	Yes
Security algorithms	3DES, AES, SHA-1, SHA-2, SHA-256, SNMP, SSH

Multicast features

Specification	Value
Multicast support	Yes
Multicast MAC address table	512 entries

Protocols

Specification	Value
Routing protocols	RIP

Design

Specification	Value
Stackable	Yes
Product colour	Grey
LED indicators	Yes
Number of fans	0 fan(s)
Safety	UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1
Electromagnetic compatibility	EN55022 A, FCC A, VCCI A

Performance

Specification	Value
Physical stacking (units)	24
Memory type	DDR-SDRAM
Internal memory	512 MB
Flash memory	64 MB

Power

Specification	Value
Power consumption (max)	15 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 2000 m
Heat dissipation	51 BTU/h

Weight & dimensions

Specification	Value
Width	341 mm
Depth	210 mm
Height	44 mm
Weight	2.2 kg

Packaging data

Specification	Value
Package width	435 mm
Package depth	400 mm
Package height	145 mm
Package weight	3.4 kg

Certificates

Specification	Value
Certification	UL, cUL, UL-EU

Logistics data

Specification	Value
Country of origin	China
