1000) Grey

Model X230-28GTPart no. X230-28GT-10

89 specifications

Memory256 MB
Noise34 dB
Weight2.4 kg
ColourGrey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24

See all specifications

Overview

Memory: 256 MB
Noise: 34 dB
Weight: 2.4 kg
Colour: Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24

Brand: Allied Telesis
Category: Network Switch
Model: X230-28GT
Part number: X230-28GT-10

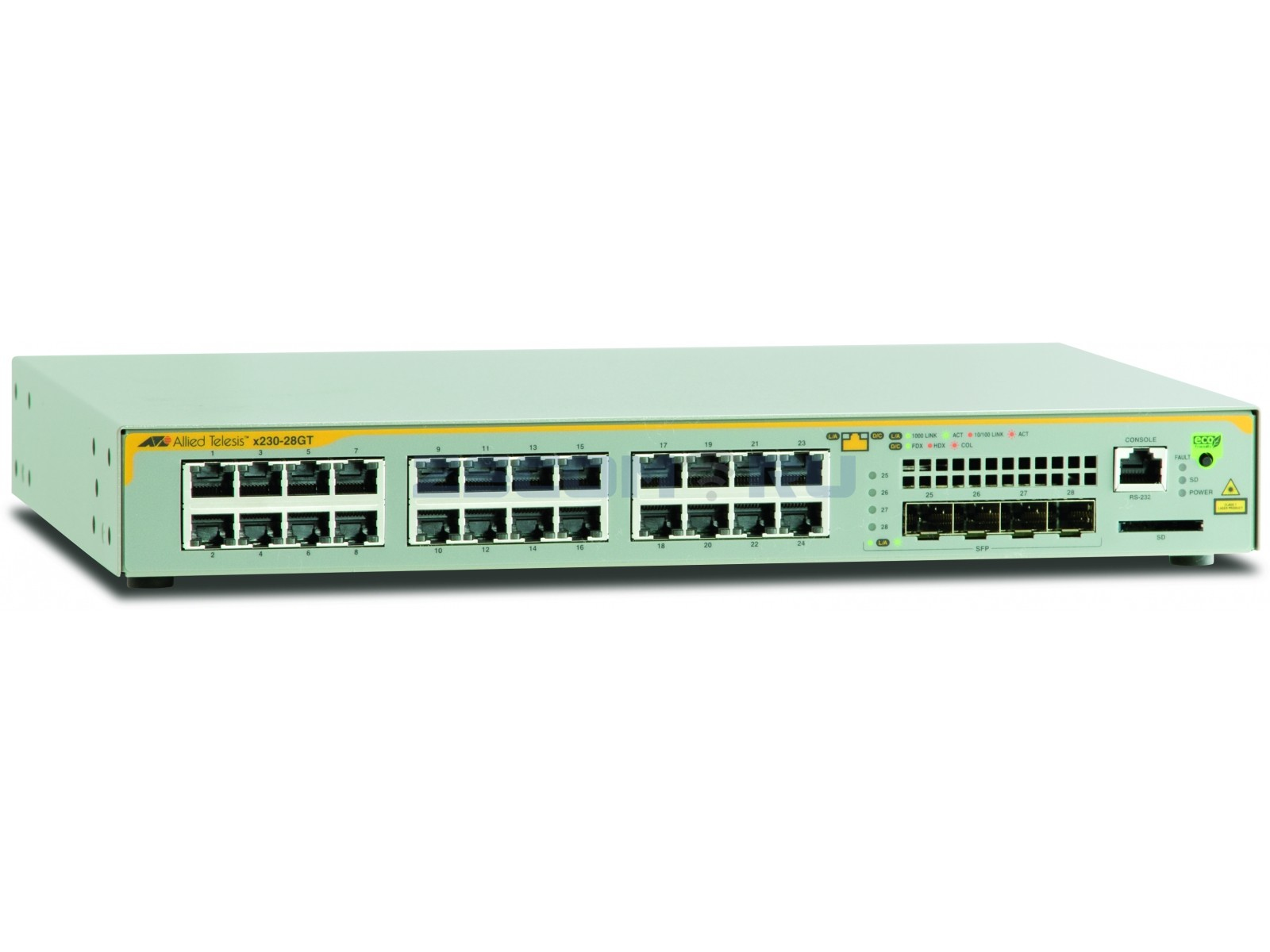

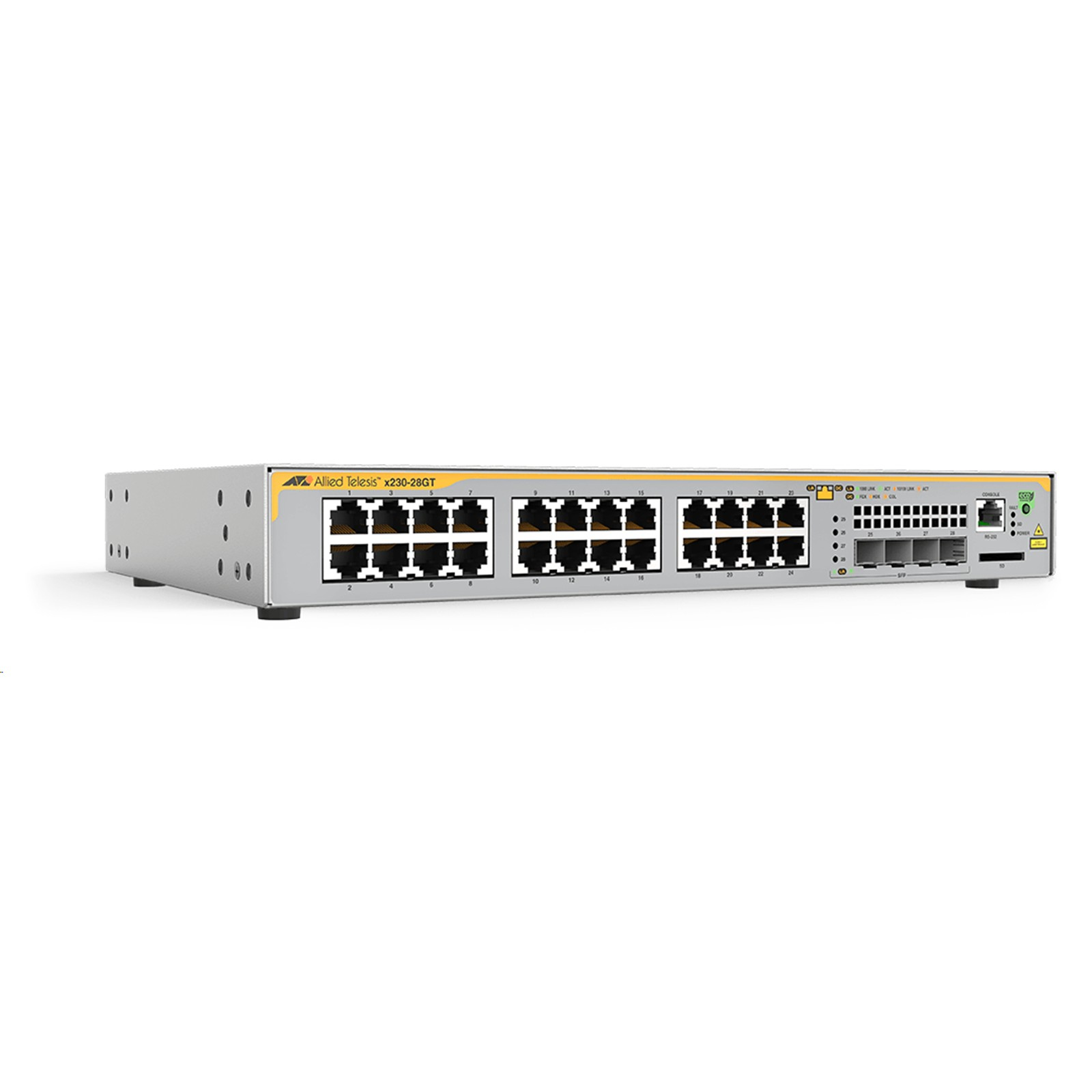

Also known as: Allied Telesis X230-28GT Managed L3 Gigabit Ethernet (10/100/1000) Grey

Specifications

89 specifications in 17 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
Traffic classification	Yes
System event log	Yes
MIB support	SNMP

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	4
Fiber optic connector	SFP
Console port	RJ-45
Compatible memory cards	SD, SDHC
Power connector	DC-in jack

Network

Specification	Value
Networking standards	IEEE 802.1Q, IEEE 802.1v, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 10GBASE-T, 100BASE-FX, 100BASE-T, 1000BASE-LX, 1000BASE-SX
Port mirroring	Yes
Full duplex	Yes
IP routing	Yes
Active link detection	Yes
Broadcast storm control	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN

Optical fiber

Specification	Value
Fiber ethernet cabling technology	1000BASE-X, 1000BASE‑LX, 1000BASE‑SX, 1000BASE‑ZX
Fiber type	Multi-mode
Transmission distance (max)	80 km

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	56 Gbit/s
Throughput	41.7 Mpps
Latency (10-100 Mbps)	8.6 µs
Latency (1 Gbps)	4.3 µs
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	1.5 MB

Security

Specification	Value
DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	MAC-based authentication, Port-based authentication
BPDU filtering/protection	Yes
Loop protection	Yes
MAC address filtering	Yes
SSH/SSL support	Yes
Security algorithms	3DES, 128-bit AES, 192-bit AES, 256-bit AES, 802.1x RADIUS, AES, EAP, HTTPS, PEAP, SHA-1, SHA-2, SMTP-AUTH, SNMP, SSH, SSH-2, SSL/TLS, 802.1x RADIUS, EAP, HTTPS, MD5, PEAP, SNMP, SSH, SSH-2, SSL/TLS

Multicast features

Specification	Value
Multicast support	Yes

Protocols

Specification	Value
Management protocols	AMF, GUI, CLI, SNMPv1/v2c/v3, LLDP, SMIv2, AgentX, RMON MIB, VACM, USM
Supported network protocols	IPv6, IPv4, DHCP, NTPv6, STP, BDPU, IP, ICMP, ARP, LLDP, SNMP, MSTP, RSTP, RIP, TLS,TTLS,PEAP, MD5, Telnet, GVRP

Design

Specification	Value
Rack mounting	Yes
Stackable	Yes
Product colour	Grey
LED indicators	Status
Safety	UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1
Electromagnetic compatibility	EN55022 class A, FCC class A, VCCI class A, EN55024, EN61000-3-levels 2 (Harmonics), and 3 (Flicker)

Performance

Specification	Value
Physical stacking (units)	32
Memory type	DDR-SDRAM
Internal memory	256 MB
Flash memory	64 MB
Noise level	34 dB

Power

Specification	Value
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	2.4 A
Power consumption (typical)	26 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m
Heat dissipation	89 BTU/h

Weight & dimensions

Specification	Value
Width	341 mm
Depth	231 mm
Height	44 mm
Weight	2.4 kg

Packaging data

Specification	Value
Package type	Box
Package width	430 mm
Package depth	360 mm
Package height	150 mm
Package weight	4 kg

Certificates

Specification	Value
Certification	UL, cUL, UL-EU, RoHS

Logistics data

Specification	Value
Country of origin	China
