Allied Telesis x230-28GP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Model x230-28GPPart no. AT-X230-28GP-30EAN 767035204079
92 specifications
- Memory256 MB
- Noise34 dB
- Type1U
- Weight4.7 kg
- ColourGrey
- Switch typeManaged
Overview
- Memory
- 256 MB
- Noise
- 34 dB
- Type
- 1U
- Weight
- 4.7 kg
- Colour
- Grey
- Switch type
- Managed
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- x230-28GP
- Part numbers
- AT-X230-28GP-30, AT-X230-28GP-40
- EAN / UPC
- 767035204079, 767035204086
- Also known as
- Allied Telesis x230-28GP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Specifications
92 specifications in 17 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Traffic classification | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
| Fiber optic connector | SFP |
| Compatible memory cards | SD, SDHC |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Active link detection | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Stacked VLAN, Tagged VLAN |
| Number of VLANs | 2048 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 100BASE-X, 1000BASE-X |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.7 Mpps |
| Latency (1 Gbps) | 4.3 µs |
| Number of queues | 8 |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP snooping, DHCPv6 client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Web-based authentication |
| Authentication type | AAA, IEEE 802.1x |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
| SSH/SSL support | Yes |
| Security algorithms | 3DES, AES, MD5, PEAP, SHA-1, SHA-2, SNMPv3, SSH, SSL/TLS, TTLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast MAC address table | 512 entries |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMPv1, v2c, v3 |
| Routing protocols | RIP, RIP-2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Electromagnetic compatibility | EN55022 class A, FCC class A, VCCI class A |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Firmware upgradeable | Yes |
| Noise level | 34 dB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2.4 A |
| Power consumption (max) | 520 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 370 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2000 m |
| Heat dissipation | 303 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 290 mm |
| Height | 44 mm |
| Weight | 4.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 530 mm |
| Package depth | 430 mm |
| Package height | 150 mm |
| Package weight | 6.35 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, cUL, UL-EU, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
What people say
Reviews & ratings
Allied Telesis x230-28GP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
No reviews yet
Be the first to tell others how Allied Telesis x230-28GP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Allied Telesis x230-28GP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

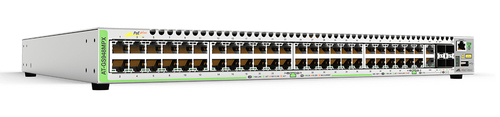

All network switch comparisons- Allied Telesis x230-28GP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey vsAllied Telesis AT-GS948MPX-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) GreyCompare specs

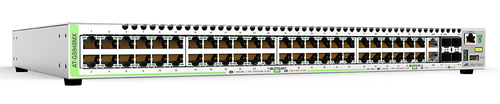

- Allied Telesis x230-28GP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey vsAllied Telesis AT-GS948MX-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) GreyCompare specs
