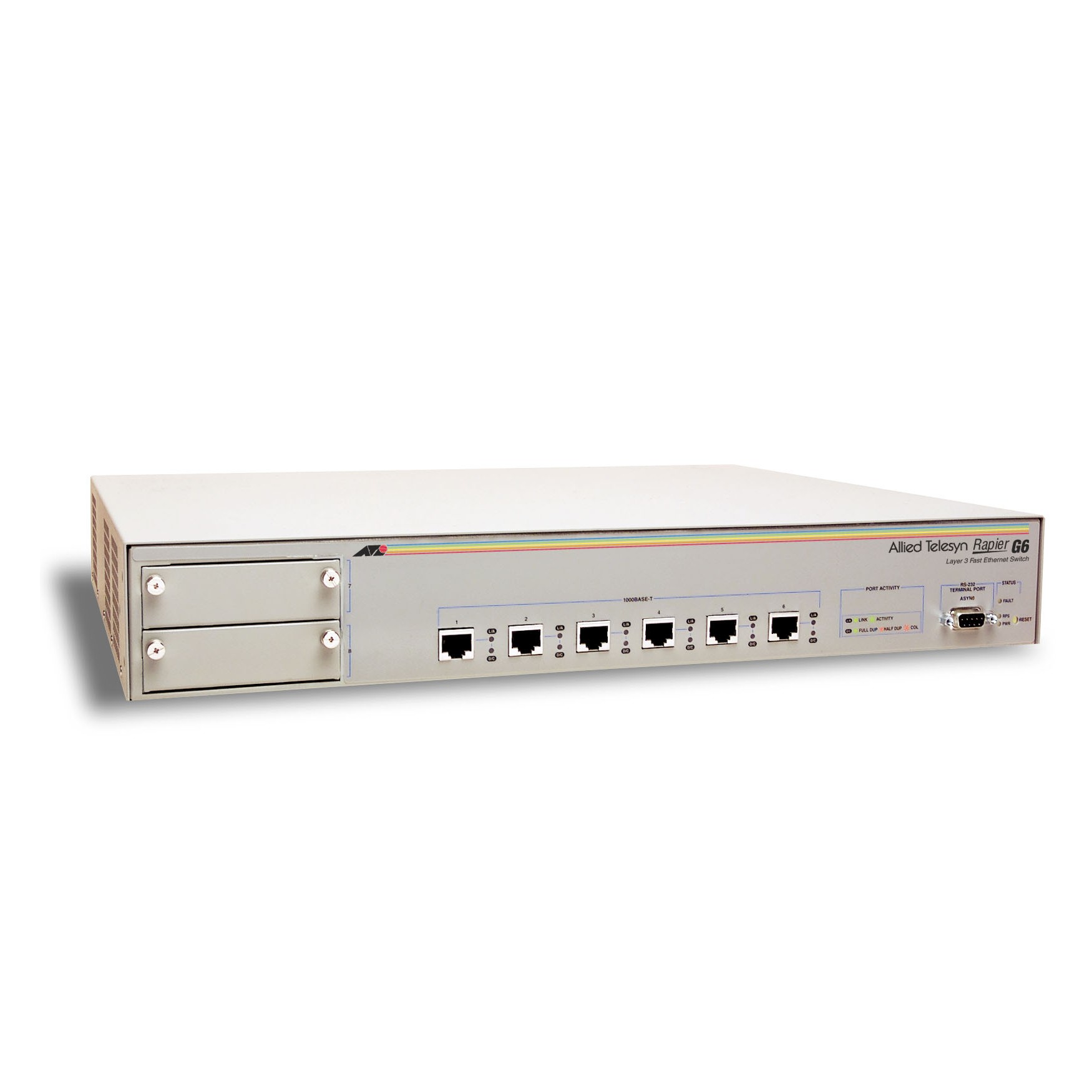

Rapier G6 Layer 3 Switch
Model Rapier G6 Layer 3 SwitchPart no. AT-RPG6EAN 767035137094
31 specifications
- ProcessorRISC
- Speed1 Gbit/s
- ConnectivityWired
- Weight5.5 kg
- MIB supportII, MAU, Ethernet, Bridge, RIPv2
- Basic switching RJ-45 Ethernet ports quantity6
Overview
- Processor
- RISC
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 5.5 kg
- MIB support
- II, MAU, Ethernet, Bridge, RIPv2
- Basic switching RJ-45 Ethernet ports quantity
- 6
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- Rapier G6 Layer 3 Switch
- Part number
- AT-RPG6
- EAN / UPC
- 767035137094
- Also known as
- Allied Telesis Rapier G6 Layer 3 Switch
Specifications
31 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| MIB support | II, MAU, Ethernet, Bridge, RIPv2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 6 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 1000Base-T, 100Base-TX |
| Full duplex | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 35 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 4 MB |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | RISC |
| Processor frequency | 200 MHz |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 95 W |
Other features
| Specification | Value |
|---|---|
| Management platform | Web-browser, Console, Telnet CLI, SNMP, RMON |
| Latency | 3 ms |
| Data transfer rate | 1000 Mbit/s |
| Dimensions (WxDxH) | 440 x 356 x 66 mm |
| Connectivity technology | Wired |
| Authentication method | RADIUS |
| Packet transfer speed | 11.9Mpps |
| Power requirements | 100-240V AC, 50/60Hz |
| Expansion slots | 2x Gigabit Uplink |
| I/O ports | 6x Gigabit Ethernet 1x RS-232 Terminal 1x Power (3-pin) 1x RPS input |
| Technical features | IPX RIP routing AppleTalk routing PIM-DM Multicast RSVP QoS DVMRP Multicast |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5.5 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 1950 3rd edition, CSA 22.2 No. 950, EN60950 (TUV), VCCI Class I, FCC Part 15 Class A, EN550022 Class A, EN50082-1 |
