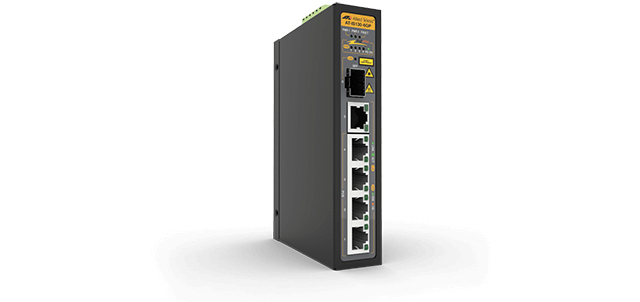

IS130-6GP Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model IS130-6GPPart no. AT-IS130-6GP-80EAN 767035215310
44 specifications
- Weight500 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- Networking standardsIEEE 802.3af, IEEE 802.3at
- MAC address table2000 entries
Overview
- Weight
- 500 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Networking standards
- IEEE 802.3af, IEEE 802.3at
- MAC address table
- 2000 entries
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- IS130-6GP
- Part number
- AT-IS130-6GP-80
- EAN / UPC
- 767035215310, 7670352153100
- Also known as
- Allied Telesis IS130-6GP Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
44 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 12 Gbit/s |
| Forwarding rate | 8.93 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
| Safety | AS/NZS 62368.1 CAN/CSA C22.2 No.62368-1 EN/IEC/UL62368-1 |
| Electromagnetic compatibility | AS/NZS CISPR 32, A CAN/CSA-CISPR 22 CISPR 22; CISPR 32 EN55024; EN55032, A EN61000-6-2, IEC61000-6-4, A FCC 15B, A ICES-003, 6 A VCCI,A |
Performance
| Specification | Value |
|---|---|
| Buffer size | 128 KB |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 109.6 W |
| DC voltage range | 48 - 54 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 90 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 2000 m |
| Heat dissipation | 374 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 30 mm |
| Depth | 95 mm |
| Height | 140 mm |
| Weight | 500 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 216 mm |
| Package depth | 165 mm |
| Package height | 68 mm |
| Package weight | 700 g |
Certificates
| Specification | Value |
|---|---|
| Certification | WEEE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
