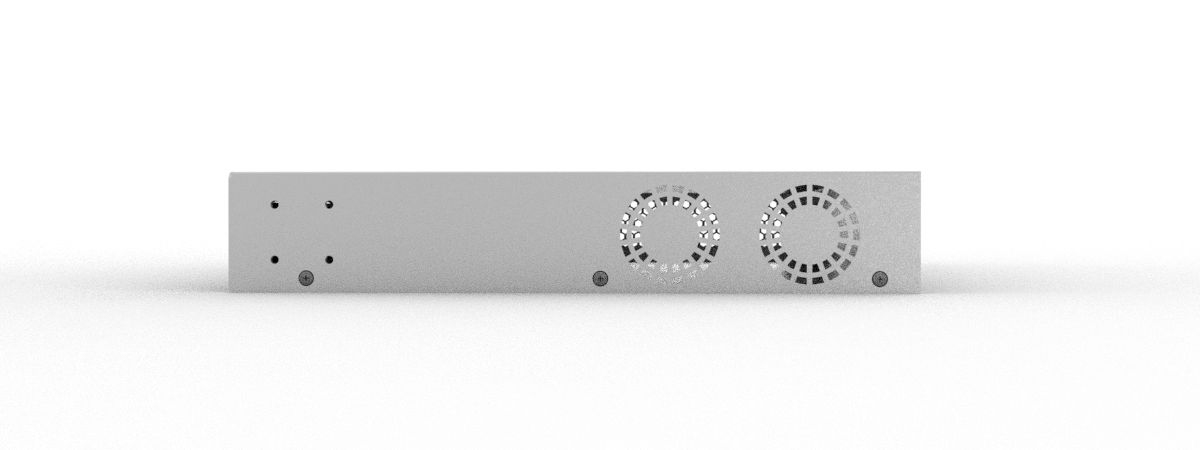

iGS950/28PS Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop/Wall-Mounting Silver
Model iGS950/28PSPart no. AT-IGS950/28PS-950EAN 767035239569
76 specifications
- Memory256 MB
- Noise51.7 dB
- TypeDesktop/Wall-Mounting
- Weight3.92 kg
- ColourSilver
- Switch typeManaged
Overview
- Memory
- 256 MB
- Noise
- 51.7 dB
- Type
- Desktop/Wall-Mounting
- Weight
- 3.92 kg
- Colour
- Silver
- Switch type
- Managed
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- iGS950/28PS
- Part number
- AT-IGS950/28PS-950
- EAN / UPC
- 767035239569
- Also known as
- Allied Telesis iGS950/28PS Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop/Wall-Mounting Silver
Specifications
76 specifications in 18 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | RFC 1213 MIB-II RFC 1643 Ethernet MIB RFC 1493 Bridge MIB RFC 2131 DHCPv4 server and client Private Enterprise MIB (Allied Telesis provides the spec) |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1x, IEEE 802.3at |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Link aggregation | Yes |
| VLAN support | Yes |
| Number of VLANs | 256 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 100BASE-FX, 1000BASE-SX, 1000BASE-LX |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.7 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 0.512 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) IPv4 entries | 256 |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | Desktop/Wall-Mounting |
| Product colour | Silver |
| Reset button | Yes |
| LED indicators | Yes |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Memory type | DRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Noise level | 51.7 dB |
| Telnet | Yes |
| Fanless | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 7 A |
| Power consumption (typical) | 29.8 W |
| Power consumption (max) | 446.1 W |
| Power plug type | Type F |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet plus (PoE+) ports quantity | 12 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
Other features
| Specification | Value |
|---|---|
| Size (imperial) | 48.3 cm (19") |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 1521.9 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 250 mm |
| Height | 44 mm |
| Weight | 3.92 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Power |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Rubber feet | Yes |
| Screws included | Yes |
Sustainability
| Specification | Value |
|---|---|
| Doesn't contain | Lead, Mercury, Cadmium |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Trade Agreements Act (TAA), CE, UKCA, Federal Communications Commission (FCC), UL, TÜV mark, RoHS |
