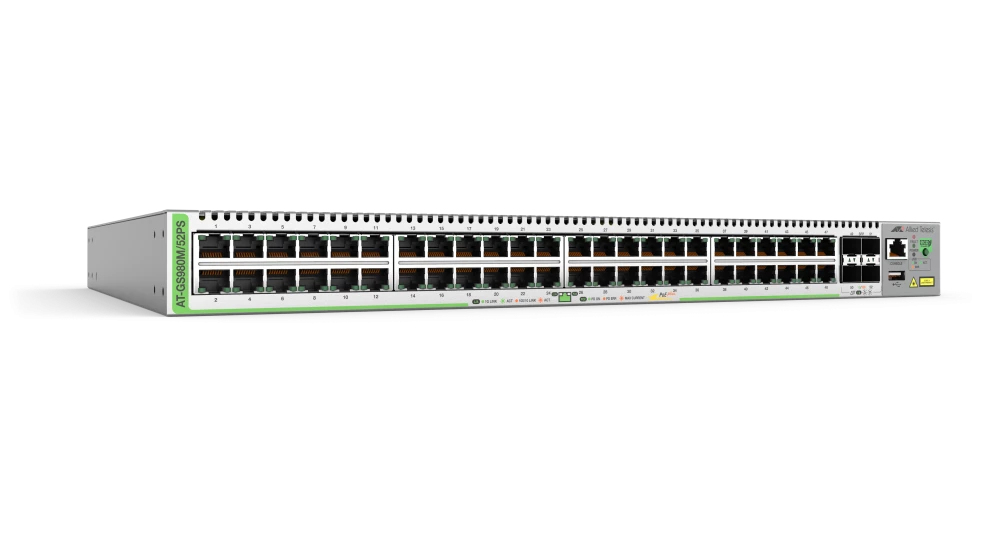

GS980M Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Model GS980MPart no. AT-GS980M/52PS-10EAN 767035215402
78 specifications
- Memory512 MB
- Noise42 dB
- Type1U
- Weight5.8 kg
- ColourGrey
- Switch typeManaged
Overview
- Memory
- 512 MB
- Noise
- 42 dB
- Type
- 1U
- Weight
- 5.8 kg
- Colour
- Grey
- Switch type
- Managed
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- GS980M
- Part numbers
- AT-GS980M/52PS-10, AT-GS980M/52-10
- EAN / UPC
- 767035215402, 767035212357
- Also known as
- Allied Telesis GS980M Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Specifications
78 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | SNMP MIB |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| IPv4 routes | 16 |
| IPv6 routes | 16 |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4094 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 100BASE-X, 1000BASE-X |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 104 Gbit/s |
| Forwarding rate | 77.4 Mpps |
| Latency (10-100 Mbps) | 6.8 µs |
| Latency (1 Gbps) | 3.8 µs |
| Static route | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 3 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | MAC-based authentication, Port-based authentication, Web-based authentication |
| Authentication type | AAA, IEEE 802.1x, Network Access Control (NAC), RADIUS |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 3DES, AES, MD5, PEAP, RSA, SHA-1, SHA-2, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS, TTLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Routing protocols | RIP, RIP-2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Noise level | 42 dB |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Power consumption (max) | 48 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 48 W |
| Total Power over Ethernet (PoE) budget | 740 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 164 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 359 mm |
| Height | 44 mm |
| Weight | 5.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 575 mm |
| Package depth | 520 mm |
| Package height | 150 mm |
| Package weight | 7.8 kg |
