1000) Grey

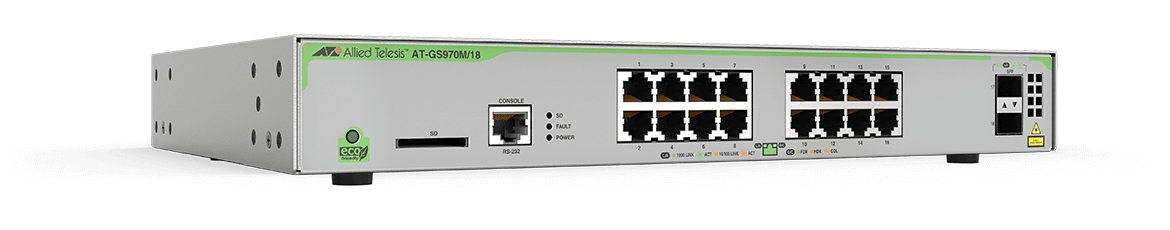

Model GS970M/18Part no. AT-GS970M/18-10EAN 767035211381

71 specifications

Memory512 MB
Noise29 dB
Weight2.4 kg
ColourGrey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity16

See all specifications

Overview

Memory: 512 MB
Noise: 29 dB
Weight: 2.4 kg
Colour: Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 16

Brand: Allied Telesis
Category: Network Switch
Model: GS970M/18
Part number: AT-GS970M/18-10
EAN / UPC: 767035211381
Also known as: Allied Telesis GS970M/18 Managed L3 Gigabit Ethernet (10/100/1000) Grey

Specifications

71 specifications in 17 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
Traffic classification	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Fast Ethernet (copper) ports quantity	16
SFP module slots quantity	2
Console port	RS-232

Network

Specification	Value
Networking standards	IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN, Port-based VLAN
Number of VLANs	4094

Optical fiber

Specification	Value
Switching optical modules type	100 Gigabit Ethernet

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	36 Gbit/s
Forwarding rate	26.8 Mpps
Latency (1 Gbps)	3.4 µs
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	1.5 MB

Security

Specification	Value
DHCP features	DHCP snooping, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	Guest VLAN, MAC-based authentication, Web-based authentication
BPDU filtering/protection	Yes
Loop protection	Yes
MAC address filtering	Yes
Password protection	Yes
SSH/SSL support	Yes
Security algorithms	192-bit AES, 256-bit AES, 802.1x RADIUS, AES, DES, MD5, PEAP, RSA, SHA-1, SHA-2, SSL/TLS

Multicast features

Specification	Value
Multicast support	Yes

Protocols

Specification	Value
Management protocols	SNMP

Design

Specification	Value
Rack mounting	No
Product colour	Grey
LED indicators	Yes
Safety	EN60950-1 (TUV), UL 60950-1(cULus), EN60825-1
Electromagnetic compatibility	EN55024

Performance

Specification	Value
Memory type	DDR-SDRAM
Internal memory	512 MB
Flash memory	64 MB
Noise level	29 dB

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	2.4 A
Power consumption (typical)	18 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4000 m
Heat dissipation	55 BTU/h

Weight & dimensions

Specification	Value
Width	341 mm
Depth	231 mm
Height	44 mm
Weight	2.4 kg

Packaging data

Specification	Value
Package width	430 mm
Package depth	360 mm
Package height	150 mm
Package weight	4 kg

Certificates

Specification	Value
Certification	UL, cUL, UL-EU, CE

Logistics data

Specification	Value
Country of origin	China
