1000) Power over Ethernet (PoE) Grey

Model GS924MPXPart no. AT-GS924MPX-10EAN 767035204161

72 specifications

Overview

Brand: Allied Telesis
Category: Network Switch
Model: GS924MPX
Part number: AT-GS924MPX-10
EAN / UPC: 767035204161

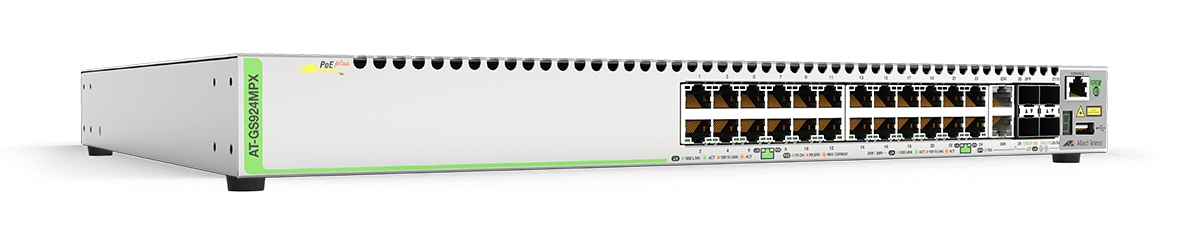

Also known as: Allied Telesis GS924MPX Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

72 specifications in 14 groups

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
Traffic classification	Yes

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
Installed SFP modules quantity	2
Installed SFP+ modules quantity	2
USB 2.0 ports quantity	1

Specification	Value
Networking standards	IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN

Specification	Value
DHCP features	DHCP snooping, DHCP relay
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	Guest VLAN, MAC-based authentication, Web-based authentication
BPDU filtering/protection	Yes
Loop protection	Yes
Password protection	Yes
SSH/SSL support	Yes
Security algorithms	DES, EAP, MD5, PEAP, RSA, SHA-1, SHA-2, SSH, SSH-2, SSL/TLS, TTLS

Specification	Value
Multicast support	Yes

Specification	Value
Management protocols	SNMP

Specification	Value
Rack mounting	No
Stackable	Yes
Product colour	Grey
LED indicators	Yes
Safety	EN60950-1 (TUV), UL 60950-1(cULus), EN60825-1
Electromagnetic compatibility	EN55024

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	24 W
Total Power over Ethernet (PoE) budget	370 W

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4000 m
Heat dissipation	182.9 BTU/h
