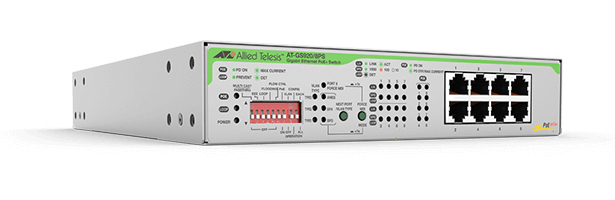

GS920/8PS Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Stainless steel
Model GS920/8PSPart no. AT-GS920/8PS
49 specifications
- Weight1.6 kg
- ColourStainless steel
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table4000 entries
Overview
- Weight
- 1.6 kg
- Colour
- Stainless steel
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 4000 entries
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- GS920/8PS
- Part number
- AT-GS920/8PS
- Also known as
- Allied Telesis GS920/8PS Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Stainless steel
Specifications
49 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Configuring Location Settings (CLI) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148880 pps |
| Packet buffer memory | 0.524 MB |
Security
| Specification | Value |
|---|---|
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Stainless steel |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 5.4 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 2000 m |
| Heat dissipation | 8 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 275 mm |
| Height | 42.5 mm |
| Weight | 1.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
