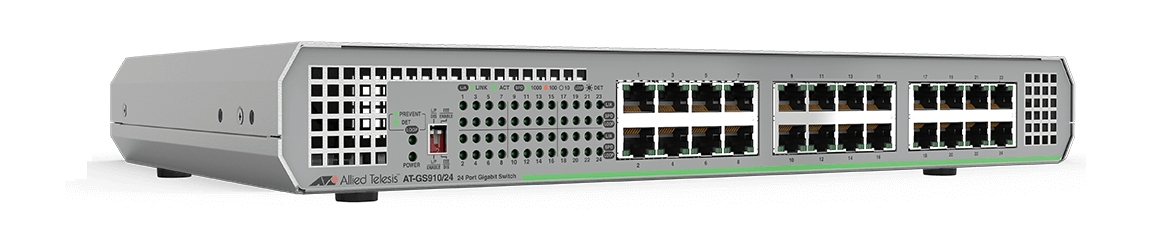

Allied Telesis GS910/24 Unmanaged
10G Ethernet (100/1000/10000) Grey
Model GS910/24Part no. AT-GS910/24-10EAN 767035207513
38 specifications
- Weight2.1 kg
- ColourGrey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- Full duplexYes
- MAC address table8000 entries
Overview
- Weight
- 2.1 kg
- Colour
- Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Full duplex
- Yes
- MAC address table
- 8000 entries
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- GS910/24
- Part number
- AT-GS910/24-10
- EAN / UPC
- 767035207513
- Also known as
- Allied Telesis GS910/24 Unmanaged 10G Ethernet (100/1000/10000) Grey
Specifications
38 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Cable length detection | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Throughput | 35.7 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet buffer memory | 0.524 MB |
Security
| Specification | Value |
|---|---|
| BPDU tunneling | Yes |
| Loop protection | Yes |
| Security algorithms | EAP |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Grey |
| LED indicators | Yes |
| Safety | UL60950-1, 2nd Edition, CSA C22.2 No.60950-1-07, 2nd Edition, IEC60950-1(UL-EU, UL-CB) |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.3 A |
| Power consumption (max) | 17 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 341 mm |
| Depth | 210 mm |
| Height | 44 mm |
| Weight | 2.1 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | EAC, EN55024, ICES Class A, VCCI Class A, FCC Class A, RCM, CE, EN55022, CISPR 55022 |
