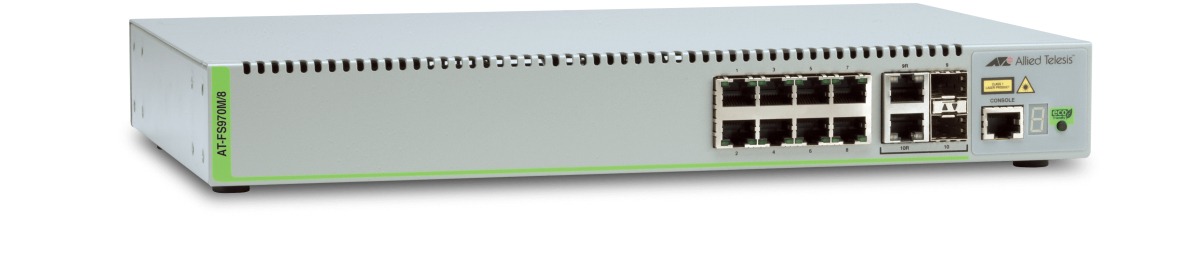

100) Power over Ethernet (PoE) Grey

Model FS970M/8Part no. AT-FS970M/8-50EAN 767035201283

68 specifications

Memory126 MB
Weight100 g
ColourGrey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity8
10G supportNo

See all specifications

Overview

Memory: 126 MB
Weight: 100 g
Colour: Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 8
10G support: No

Brand: Allied Telesis
Category: Network Switch
Model: FS970M/8
Part number: AT-FS970M/8-50
EAN / UPC: 767035201283
Also known as: Allied Telesis FS970M/8 Managed L2/L3 Fast Ethernet (10/100) Power over Ethernet (PoE) Grey

Specifications

68 specifications in 17 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
MIB support	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	2

Network

Specification	Value
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Port mirroring	Yes
Full duplex	Yes
IP routing	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Broadcast storm control	Yes
Flow control support	Yes
Head-of-line (HOL) blocking	Yes
Spanning tree protocol	Yes
Virtual LAN features	Protocol-based VLAN, Port-based VLAN

Optical fiber

Specification	Value
Fiber ethernet cabling technology	100BASE-FX, 100BASE-X

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	5.6 Gbit/s
Throughput	4.1 Mpps
Latency (10-100 Mbps)	80 µs
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	9198
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet forwarding rate (100 Mbps)	148800 pps

Security

Specification	Value
DHCP features	DHCP client
IGMP snooping	Yes
Loop protection	Yes
SSH/SSL support	Yes
Security algorithms	SNMP, SSH, SSL/TLS

Multicast features

Specification	Value
Multicast support	Yes
Number of multicast groups filtered	255

Protocols

Specification	Value
Supported network protocols	HTTP, HTTPS

Design

Specification	Value
Product colour	Grey
Safety	UL 60950-1 (cUlus), EN60950-1 (TUV), EN60825

Performance

Specification	Value
Processor frequency	266 MHz
Internal memory	126 MB
Flash memory	16 MB

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	47/63 Hz
Power consumption (max)	9.1 W
Power plug type	Type C

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Total Power over Ethernet (PoE) budget	185 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 75 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m
Heat dissipation	31 BTU/h

Weight & dimensions

Specification	Value
Width	330 mm
Depth	203 mm
Height	44 mm
Weight	100 g

Packaging content

Specification	Value
Cables included	AC, LAN (RJ-45)
Quick start guide	Yes

Packaging data

Specification	Value
Rubber feet	Yes

Certificates

Specification	Value
Certification	FCC class A, CISPR class A, EN55022 class A, C-TICK, VCCI Class A, CE, EN601000-3-2, EN601000-3-3, EN55024, RoHS
