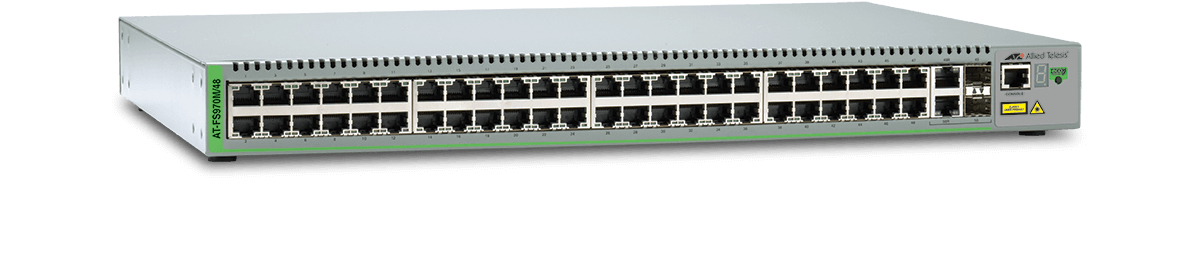

Allied Telesis FS970M/48 Managed L2/L3 Fast Ethernet (10/100) Power over Ethernet (PoE) Grey
Model FS970M/48Part no. AT-FS970M/48-50EAN 767035201580
71 specifications
- Memory128 MB
- Weight4 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- 10G supportNo
Overview
- Memory
- 128 MB
- Weight
- 4 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- 10G support
- No
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- FS970M/48
- Part number
- AT-FS970M/48-50
- EAN / UPC
- 767035201580
- Also known as
- Allied Telesis FS970M/48 Managed L2/L3 Fast Ethernet (10/100) Power over Ethernet (PoE) Grey
Specifications
71 specifications in 17 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN |
| Number of VLANs | 4096 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 100BASE-FX, 1000BASE-X |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 13.6 Gbit/s |
| Throughput | 10.1 Mpps |
| Latency (10-100 Mbps) | 81 µs |
| Number of queues | 8 |
| Number of static routes | 24 |
| Jumbo frames support | Yes |
| Jumbo frames | 9198 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Loop protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | SNMP, SSH, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 255 |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | HTTP, HTTPS |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Safety | UL 60950-1 (cUlus), EN60950-1 (TUV), EN60825 |
Performance
| Specification | Value |
|---|---|
| Processor frequency | 266 MHz |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Power consumption (max) | 23.2 W |
| Power plug type | Type C |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 308 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 77 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 291 mm |
| Height | 44 mm |
| Weight | 4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Rubber feet | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC class A, CISPR class A, EN55022 class A, C-TICK, VCCI Class A, CE, EN601000-3-2, EN601000-3-3, EN55024, RoHS |
