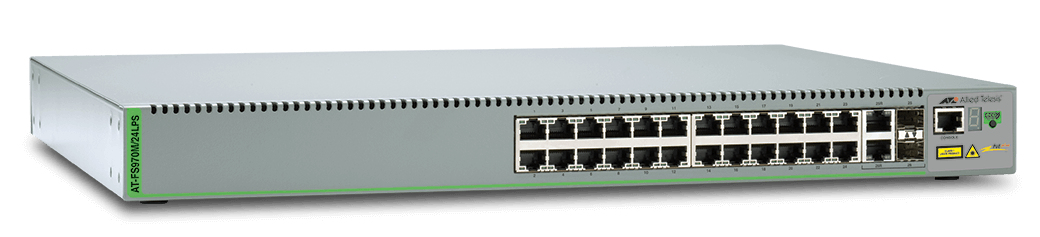

Allied Telesis FS970M/24LPS Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) Grey

Allied Telesis FS970M/24LPS Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) Grey

Model FS970M/24LPSPart no. 990-004133-50EAN 767035202617

60 specifications

Memory128 MB
Noise57 dB
Weight4.4 kg
ColourGrey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24

See all specifications

Overview

Memory: 128 MB
Noise: 57 dB
Weight: 4.4 kg
Colour: Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24

Brand: Allied Telesis
Category: Network Switch
Model: FS970M/24LPS
Part number: 990-004133-50
EAN / UPC: 767035202617
Also known as: Allied Telesis FS970M/24LPS Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) Grey

Specifications

60 specifications in 13 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
System event log	Yes
MIB support	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity	24
Gigabit Ethernet (copper) ports quantity	2
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	2
Console port	RJ-45

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	100BASE-TX
Port mirroring	Yes
Full duplex	Yes
Auto MDI/MDI-X	Yes
Broadcast storm control	Yes
Flow control support	Yes
Head-of-line (HOL) blocking	Yes
Link aggregation	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN, Protocol-based VLAN, Port-based VLAN
Number of VLANs	4096

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	8.8 Gbit/s
Throughput	6.5 Mpps
Latency (10-100 Mbps)	81 µs

Security

Specification	Value
DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Yes
MAC address filtering	Yes

Multicast features

Specification	Value
Multicast support	Yes
Number of multicast groups filtered	255

Design

Specification	Value
Product colour	Grey
Safety	UL 60950-1 (cUlus), EN60950-1 (TUV), EN60825

Performance

Specification	Value
Processor frequency	266 MHz
Memory type	RAM
Internal memory	128 MB
Flash memory	16 MB
Noise level	57 dB

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	47/63 Hz
Power consumption (max)	230 W
Power plug type	Type C

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	185 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m
Heat dissipation	150 BTU/h

Weight & dimensions

Specification	Value
Width	441 mm
Depth	323 mm
Height	44 mm
Weight	4.4 kg

Certificates

Specification	Value
Certification	FCC class A, CISPR class A, EN55022 class A, C-TICK, VCCI Class A, CE, EN601000-3-2, EN601000-3-3
