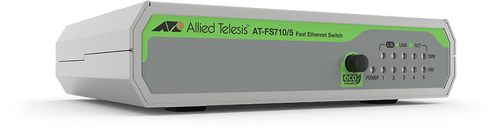

Allied Telesis FS710/5E Unmanaged Fast Ethernet (10/100) Green, Grey
Model FS710/5EPart no. 990-005842-60EAN 767035211756
33 specifications
- Weight380 g
- ColourGreen, Grey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table2000 entries
Overview
- Weight
- 380 g
- Colour
- Green, Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 2000 entries
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- FS710/5E
- Part numbers
- 990-005842-60, AT-FS710/5E
- EAN / UPC
- 767035211756, 7670352117560
- Also known as
- Allied Telesis FS710/5E Unmanaged Fast Ethernet (10/100) Green, Grey
Specifications
33 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 1 Gbit/s |
| Throughput | 0.74 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 2048 |
| Packet buffer memory | 0.096 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Green, Grey |
| LED indicators | Activity, Link, Power |
| Wall mountable | Yes |
| Safety | UL60950-1, CSAC22.2 №60950-1, EN60950-1(TUV), CE |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 1.7 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 131 mm |
| Depth | 101 mm |
| Height | 30 mm |
| Weight | 380 g |
Certificates
| Specification | Value |
|---|---|
| Certification | VCCI Class B FCC Class B EN55032 Class A CISPR 32 Class B RCM Class B |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Compare Allied Telesis FS710/5E Unmanaged Fast Ethernet (10/100) Green, Grey
Compare any products- Allied Telesis FS710/5E Unmanaged Fast Ethernet (10/100) Green, Grey vsAllied Telesis FS710/5 Unmanaged Fast Ethernet (10/100) Green, GreyCompare specs

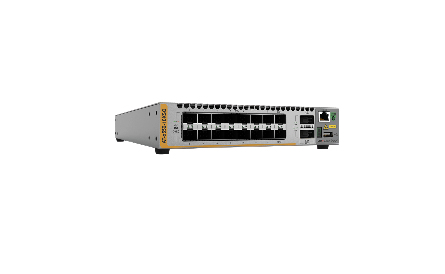

- Allied Telesis FS710/5E Unmanaged Fast Ethernet (10/100) Green, Grey vsAllied Telesis AT-X550-18XSQ network switch Managed L3 GreyCompare specs

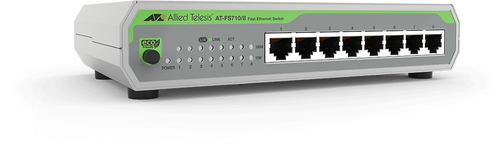

- Allied Telesis FS710/5E Unmanaged Fast Ethernet (10/100) Green, Grey vsAllied Telesis FS710/8 Unmanaged Fast Ethernet (10/100) Green, GreyCompare specs
- Allied Telesis FS710/5E Unmanaged Fast Ethernet (10/100) Green, Grey vsAllied Telesis AT-FS710/8-50 Unmanaged Fast Ethernet (10/100) GreyCompare specs

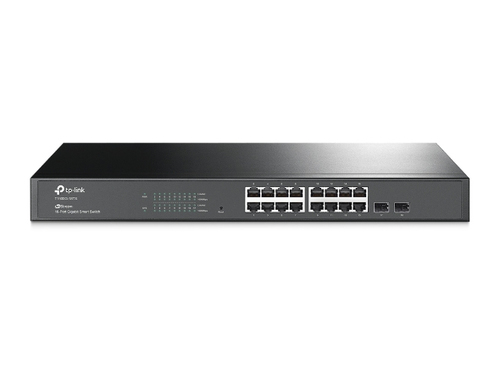

- Allied Telesis FS710/5E Unmanaged Fast Ethernet (10/100) Green, Grey vsTP-Link JetStream16-Port Gigabit Smart Network Switch with 2 SFP SlotsCompare specs

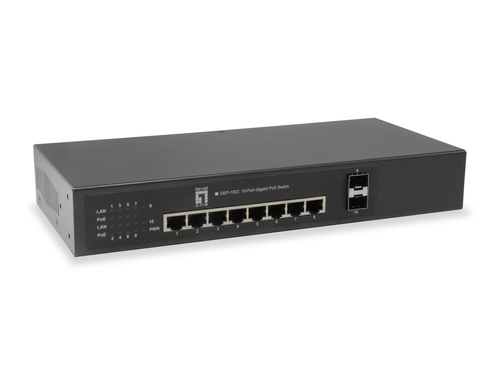

- Allied Telesis FS710/5E Unmanaged Fast Ethernet (10/100) Green, Grey vsLevelOne 10-Port Gigabit PoE Switch, 8 PoE Outputs, 2 x SFP, Internal Power Supply, 802.3at/af PoECompare specs
