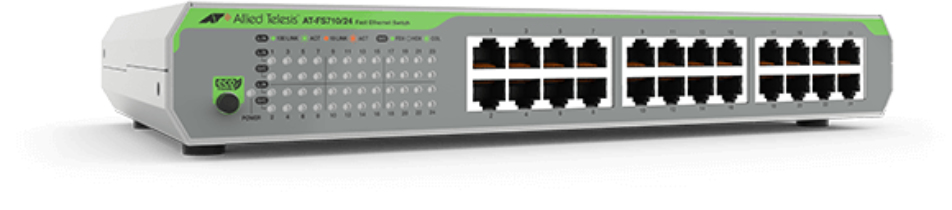

FS710/24 Unmanaged Fast Ethernet (10/100) Grey
Model FS710/24Part no. AT-FS710/24-50EAN 767035211930
38 specifications
- Weight1.6 kg
- ColourGrey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table8000 entries
Overview
- Weight
- 1.6 kg
- Colour
- Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- FS710/24
- Part number
- AT-FS710/24-50
- EAN / UPC
- 767035211930, 7670352119304
- Also known as
- Allied Telesis FS710/24 Unmanaged Fast Ethernet (10/100) Grey
Specifications
38 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 4.8 Gbit/s |
| Throughput | 3.57 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 2000 |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet buffer memory | 0.256 MB |
Security
| Specification | Value |
|---|---|
| BPDU filtering/protection | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Grey |
| Wall mountable | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 5.3 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 2000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 1.6 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC 15 B / A, VCCI A, FCC A, EN55032 A, CISPR 32 A, RCM A UL60950-1, CSA C22.2 No.60950-1, EN60950-1(TUV), CE RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
