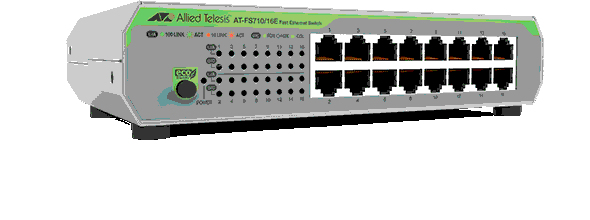

Allied Telesis FS710/16E Unmanaged Fast Ethernet (10/100) 1U Green, Grey
Model FS710/16EPart no. 990-005846-60EAN 767035211855
27 specifications
- Type1U
- Weight820 g
- ColourGreen, Grey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 820 g
- Colour
- Green, Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- FS710/16E
- Part numbers
- 990-005846-60, AT-FS710/16E
- EAN / UPC
- 767035211855
- Also known as
- Allied Telesis FS710/16E Unmanaged Fast Ethernet (10/100) 1U Green, Grey
Specifications
27 specifications in 8 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 3.2 Gbit/s |
| Throughput | 2.38 Mpps |
| Jumbo frames support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Green, Grey |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 4.5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 2000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 124 mm |
| Height | 44 mm |
| Weight | 820 g |
What people say
Reviews & ratings
Allied Telesis FS710/16E Unmanaged Fast Ethernet (10/100) 1U Green, Grey
No reviews yet
Be the first to tell others how Allied Telesis FS710/16E Unmanaged Fast Ethernet (10/100) 1U Green, Grey works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Allied Telesis FS710/16E Unmanaged Fast Ethernet (10/100) 1U Green, Grey
All network switch comparisons- Allied Telesis FS710/16E Unmanaged Fast Ethernet (10/100) 1U Green, Grey vsAllied Telesis AT-GS920/8-50 Managed Gigabit Ethernet (10/100/1000) 1U GreyCompare specs
- Allied Telesis FS710/16E Unmanaged Fast Ethernet (10/100) 1U Green, Grey vsAllied Telesis GS920/24 Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U GreyCompare specs
- Allied Telesis FS710/16E Unmanaged Fast Ethernet (10/100) 1U Green, Grey vsAllied Telesis AT-GS920/8 network switch Unmanaged Gigabit Ethernet (10/100/1000) 1U GreyCompare specs
- Allied Telesis FS710/16E Unmanaged Fast Ethernet (10/100) 1U Green, Grey vsAllied Telesis AT-GS970M/28 network switch Managed L3 Gigabit Ethernet (10/100/1000) 1U GreyCompare specs
- Allied Telesis FS710/16E Unmanaged Fast Ethernet (10/100) 1U Green, Grey vsNETGEAR M4300-96X Managed L3 2U GreyCompare specs

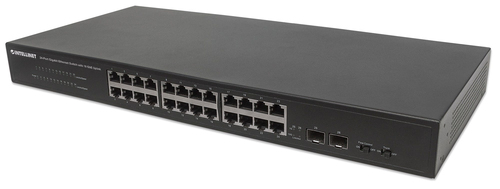

- Allied Telesis FS710/16E Unmanaged Fast Ethernet (10/100) 1U Green, Grey vsIntellinet 24-Port Gigabit Ethernet Switch with 10 GbE UplinkCompare specs
