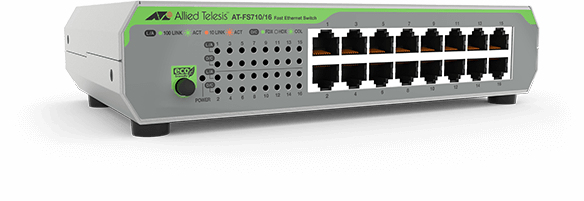

FS710/16 Unmanaged Fast Ethernet (10/100) Green, Grey
Model FS710/16Part no. AT-FS710/16
29 specifications
- Weight870 g
- ColourGreen, Grey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
- MAC address table8000 entries
Overview
- Weight
- 870 g
- Colour
- Green, Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- FS710/16
- Part number
- AT-FS710/16
- Also known as
- Allied Telesis FS710/16 Unmanaged Fast Ethernet (10/100) Green, Grey
Specifications
29 specifications in 9 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 3.2 Gbit/s |
| Throughput | 2.38 Mpps |
| Jumbo frames support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Green, Grey |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 5.4 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 2000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 124 mm |
| Height | 44 mm |
| Weight | 870 g |
