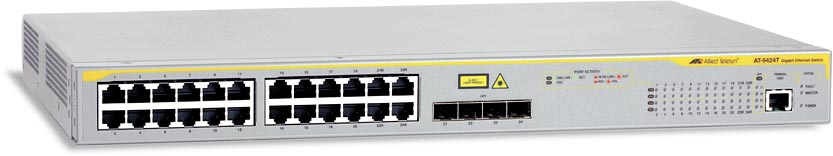

Allied Telesis AT9424T/POE50 network switch Managed L3 Power over Ethernet (PoE) Grey
Model AT9424T/POE50
59 specifications
- Memory32 MB
- Speed96 Gbit/s
- ConnectivityWired
- Weight4.21 kg
- ColourGrey
- Switch typeManaged
Overview
- Memory
- 32 MB
- Speed
- 96 Gbit/s
- Connectivity
- Wired
- Weight
- 4.21 kg
- Colour
- Grey
- Switch type
- Managed
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT9424T/POE50
- Part number
- AT9424T/POE50
- Also known as
- Allied Telesis AT9424T/POE50 network switch Managed L3 Power over Ethernet (PoE) Grey
Specifications
59 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| MIB support | RFC 1213/1215/1493/2863/1643 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 20 |
| Combo SFP ports quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Fiber optic connector | SFP |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| IP address table | 128 |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4000 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber type | Single-mode |
| Transmission distance (max) | 80 km |
| Wavelength | 1550 nm |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 96 Gbit/s |
| Throughput | 71.424 Mpps |
| Maximum data transfer rate | 96 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Security algorithms | HTTPS, SSH, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | DSCP |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Safety | y UL 60950-1, CSA C22.2 No. 60950-1-03, EN60950-1, EN60825-2 (TUV) |
Performance
| Specification | Value |
|---|---|
| Processor frequency | 200 MHz |
| Memory type | SDRAM |
| Internal memory | 32 MB |
| Flash memory | 16 MB |
| Mean time between failures (MTBF) | 250000 h |
Power
| Specification | Value |
|---|---|
| Input current | 4 A |
| Input voltage | 100-240 V |
| Power consumption (typical) | 54 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 1000 Mbit/s |
| Dimensions (WxDxH) | 438 x 304.8 x 44 mm |
| Connectivity technology | Wired |
| Input frequency | 50/60 Hz |
| Networking features | Gigabit Ethernet |
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Non-operating altitude | 0 - 3048 m |
| Operating temperature (T-T) | 32 - 104 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.21 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15 A, EN55022 A, EN55024, VCCI A, C-TICK, EN61000-3-2, EN61000-3-3, AS/NZS 3548 |
