Allied Telesis AT-XS916MXT-30 network switch Managed L3
10G Ethernet (100/1000/10000) Grey
Model AT-XS916MXT-30EAN 767035208053
54 specifications
- Noise42 dB
- Weight2.7 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity12
- 10G supportYes
Overview
- Noise
- 42 dB
- Weight
- 2.7 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 12
- 10G support
- Yes
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-XS916MXT-30
- Part number
- AT-XS916MXT-30
- EAN / UPC
- 767035208053, 767035208060, 7670352080536
- Also known as
- Allied Telesis AT-XS916MXT-30 network switch Managed L3 10G Ethernet (100/1000/10000) Grey
Specifications
54 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Traffic classification | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 320 Gbit/s |
| Throughput | 238 Mpps |
| Number of queues | 8 |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | MAC-based authentication |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | Yes |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Flash memory | 96 MB |
| Noise level | 42 dB |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Power consumption (max) | 78 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 270 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 323 mm |
| Depth | 210 mm |
| Height | 43 mm |
| Weight | 2.7 kg |
Compare Allied Telesis AT-XS916MXT-30 network switch Managed L3
Compare any products- Allied Telesis AT-XS916MXT-30 network switch Managed L3 vsAllied Telesis AT-XS916MXS-30 network switch Managed L3Compare specs

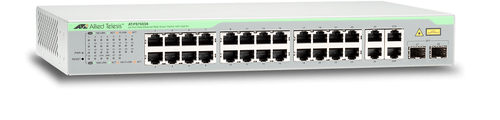

- Allied Telesis AT-XS916MXT-30 network switch Managed L3 vsAllied Telesis AT-FS750/28-30 network switch Managed Fast Ethernet (10/100) 1U GreyCompare specs
- Allied Telesis AT-XS916MXT-30 network switch Managed L3 vsAllied Telesis AT-X230-18GT-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) GreyCompare specs

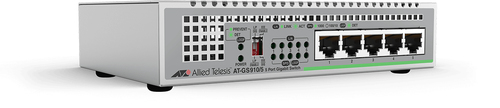

- Allied Telesis AT-XS916MXT-30 network switch Managed L3 vsAllied Telesis AT-GS910/5-30 network switch Unmanaged Gigabit Ethernet (10/100/1000) 1U GreyCompare specs

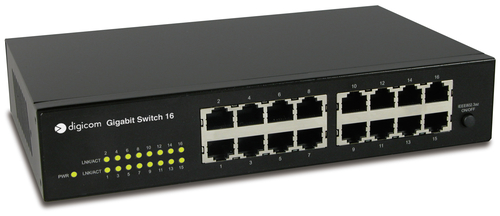

- Allied Telesis AT-XS916MXT-30 network switch Managed L3 vsDigicom SWG16-Z01 Managed Gigabit Ethernet (10/100/1000) BlackCompare specs

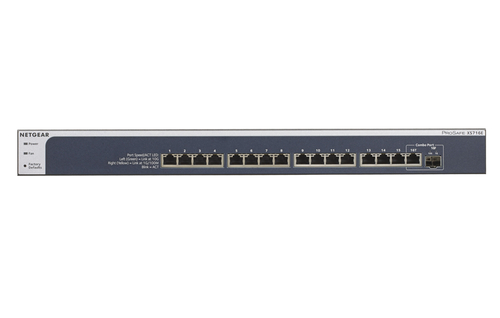

- Allied Telesis AT-XS916MXT-30 network switch Managed L3 vsNETGEAR 16-Port 10G Ethernet Plus Switch (XS716E)Compare specs

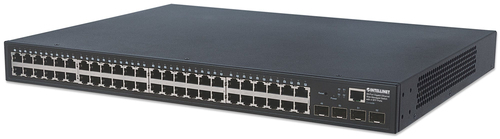

- Allied Telesis AT-XS916MXT-30 network switch Managed L3 vsIntellinet 48-Port Gigabit Ethernet Web-Managed Switch with 4 SFP PortsCompare specs
