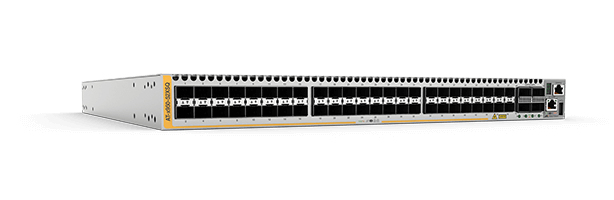

AT-x950-52XSQ-B05 Managed L3+ 1U Grey
Model AT-x950-52XSQ-B05Part no. 990-006970-B05EAN 767035222448
74 specifications
- Memory4000 MB
- Noise65.7 dB
- Type1U
- Weight7.5 kg
- ColourGrey
- Switch typeManaged
Overview
- Memory
- 4000 MB
- Noise
- 65.7 dB
- Type
- 1U
- Weight
- 7.5 kg
- Colour
- Grey
- Switch type
- Managed
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-x950-52XSQ-B05
- Part number
- 990-006970-B05
- EAN / UPC
- 767035222448
- Also known as
- Allied Telesis AT-x950-52XSQ-B05 Managed L3+ 1U Grey
Specifications
74 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Traffic shaping | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 48 |
| Fiber ports quantity | 48 |
| Fiber optic connector | SFP+ |
| QSFP28 ports quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Policy-based VLAN, Stacked VLAN |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 96000 entries |
| Switching capacity | 1920 Gbit/s |
| Forwarding rate | 1309 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 16 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCPv6 client, DHCPv6 relay, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | EAP, HTTPS, MD5, PEAP, SSH, SSH-2, SSL/TLS, TLS, TTLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast MAC address table | 8000 entries |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | BGP, BGP4, IP, OSPF, RIP, RIP-2, RIPng |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL) |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Electromagnetic compatibility | EN55032 class A, FCC class A, VCCI class A |
Performance
| Specification | Value |
|---|---|
| Internal memory | 4000 MB |
| Flash memory | 4000 MB |
| Noise level | 65.7 dB |
| Export Control Classification Number (ECCN) | 5A992C |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Power consumption (max) | 266.1 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3050 m |
| Heat dissipation | 908.1 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 449 mm |
| Height | 44 mm |
| Weight | 7.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 12 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, cUL, TUV |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8517.62.0050 |
