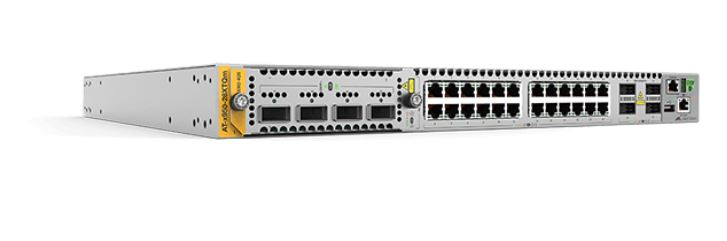

AT-x950-28XTQm-B05 Managed L3+
10G Ethernet (100/1000/10000) 1U Grey
Model AT-x950-28XTQm-B05Part no. 990-006193-B05EAN 767035218502
72 specifications
- Memory4000 MB
- Noise61.9 dB
- Type1U
- Weight7.26 kg
- ColourGrey
- Switch typeManaged
Overview
- Memory
- 4000 MB
- Noise
- 61.9 dB
- Type
- 1U
- Weight
- 7.26 kg
- Colour
- Grey
- Switch type
- Managed
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-x950-28XTQm-B05
- Part number
- 990-006193-B05
- EAN / UPC
- 767035218502
- Also known as
- Allied Telesis AT-x950-28XTQm-B05 Managed L3+ 10G Ethernet (100/1000/10000) 1U Grey
Specifications
72 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Traffic shaping | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| QSFP+ module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1ad, IEEE 802.1v, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Policy-based VLAN, Stacked VLAN |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 96000 entries |
| Switching capacity | 1920 Gbit/s |
| Forwarding rate | 1190 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 16 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCPv6 client, DHCPv6 relay |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | EAP, HTTPS, MD5, PEAP, SSH, SSH-2, SSL/TLS, TLS, TTLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast MAC address table | 8000 entries |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | BGP, BGP4, IP, OSPF, RIP, RIP-2, RIPng |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL) |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Electromagnetic compatibility | EN55032 class A, FCC class A, VCCI class A |
Performance
| Specification | Value |
|---|---|
| Internal memory | 4000 MB |
| Flash memory | 4000 MB |
| Noise level | 61.9 dB |
| Export Control Classification Number (ECCN) | 5A992C |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Power consumption (max) | 255.3 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3050 m |
| Heat dissipation | 871.1 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 445 mm |
| Height | 44 mm |
| Weight | 7.26 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 10.9 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, cUL, TUV |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8517.62.0050 |
