Allied Telesis AT-x930-28GSTX Managed L3 Gigabit Ethernet (10/100/1000) Grey
Model AT-x930-28GSTXPart no. 990-003841-00EAN 767035199498
60 specifications
- Memory2048 MB
- Noise39.7 dB
- Weight5.1 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Memory
- 2048 MB
- Noise
- 39.7 dB
- Weight
- 5.1 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-x930-28GSTX
- Part number
- 990-003841-00
- EAN / UPC
- 767035199498, 767035220314, 7670352203140, 7670352220314
- Also known as
- Allied Telesis AT-x930-28GSTX Managed L3 Gigabit Ethernet (10/100/1000) Grey
Specifications
60 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Traffic classification | Yes |
| System event log | Yes |
| MIB support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 24 |
| SFP+ module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Policy-based routing | Yes |
| Routing entries | 2000 |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 64000 entries |
| Switching capacity | 288 Gbit/s |
| Throughput | 214.3 Mpps |
| Latency (1 Gbps) | 3.7 µs |
| Latency (10 Gbps) | 2.6 µs |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCPv6 relay, DHCPv6 server, DHCP client |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast MAC address table | 2000 entries |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Safety | UL60950-1, CAN/CSA-C22.2 No.60950-1-03, EN60950-1, EN60825-1, AS/NZS60950.1, UL, cUL |
Performance
| Specification | Value |
|---|---|
| Expansion module support | Yes |
| Memory type | DDR-SDRAM |
| Internal memory | 2048 MB |
| Flash memory | 256 MB |
| Firmware upgradeable | Yes |
| Noise level | 39.7 dB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 90 - 260 V |
| AC input frequency | 47/63 Hz |
| Power consumption (typical) | 97 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 329 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 420 mm |
| Height | 44 mm |
| Weight | 5.1 kg |
Compare Allied Telesis AT-x930-28GSTX Managed L3 Gigabit Ethernet (10/100/1000) Grey

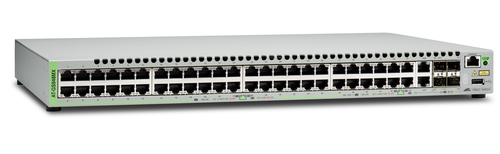

Compare any products- Allied Telesis AT-x930-28GSTX Managed L3 Gigabit Ethernet (10/100/1000) Grey vsAllied Telesis AT-GS948MX-50 Managed L2 Gigabit Ethernet (10/100/1000) GreyCompare specs

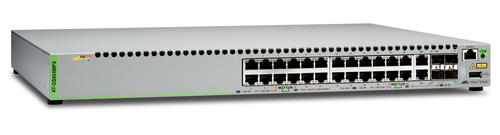

- Allied Telesis AT-x930-28GSTX Managed L3 Gigabit Ethernet (10/100/1000) Grey vsAllied Telesis AT-GS924MPX-50 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) GreyCompare specs
- Allied Telesis AT-x930-28GSTX Managed L3 Gigabit Ethernet (10/100/1000) Grey vsAllied Telesis AT-x930-52GTX Managed L3 Gigabit Ethernet (10/100/1000) GreyCompare specs
- Allied Telesis AT-x930-28GSTX Managed L3 Gigabit Ethernet (10/100/1000) Grey vsAllied Telesis AT-x930-28GTX Managed L3 Gigabit Ethernet (10/100/1000) GreyCompare specs

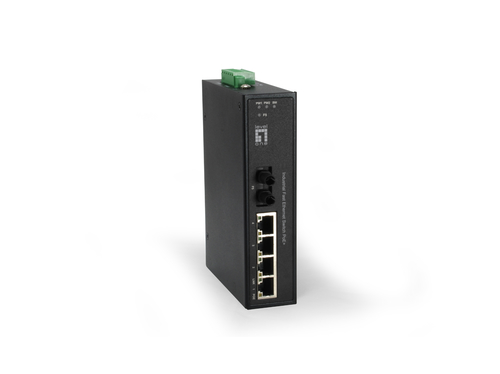

- Allied Telesis AT-x930-28GSTX Managed L3 Gigabit Ethernet (10/100/1000) Grey vsLevelOne 5-Port Fast Ethernet PoE Industrial Switch, 4 PoE Outputs, 802.3at/af PoE, 1 x ST Multi-Mode Fiber, 2kmCompare specs

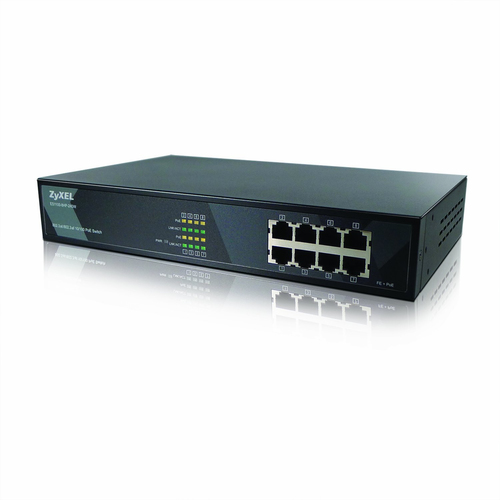

- Allied Telesis AT-x930-28GSTX Managed L3 Gigabit Ethernet (10/100/1000) Grey vsZyxel S100-8HP-240W network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) BlackCompare specs
- Allied Telesis AT-x930-28GSTX Managed L3 Gigabit Ethernet (10/100/1000) Grey vsIntellinet 24-Port Network Switch, 24-Port (RJ45), Rackmount, Gigabit, 4 SFP, Ethernet Web-Smart, 10/100/1000 MbitCompare specs

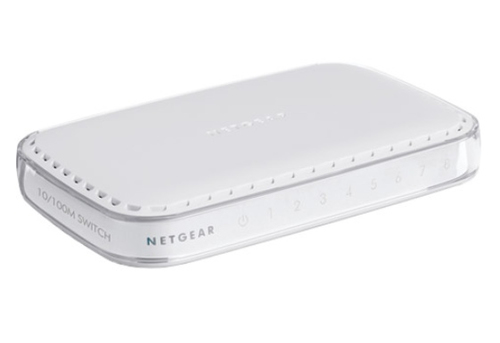

- Allied Telesis AT-x930-28GSTX Managed L3 Gigabit Ethernet (10/100/1000) Grey vsNETGEAR FS608-400PES network switch Unmanaged L2 Fast Ethernet (10/100) WhiteCompare specs
