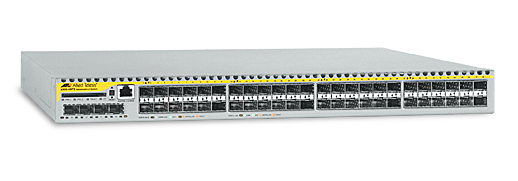

Allied Telesis AT-X900-48FS-80 Managed L3+
Model AT-X900-48FS-80Part no. 990-002027-80
29 specifications
- Speed37.6 Gbit/s
- ConnectivityWired
- Noise46 dB
- Weight7.3 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Speed
- 37.6 Gbit/s
- Connectivity
- Wired
- Noise
- 46 dB
- Weight
- 7.3 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-X900-48FS-80
- Part number
- 990-002027-80
- Also known as
- Allied Telesis AT-X900-48FS-80 Managed L3+
Specifications
29 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3+ |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Port mirroring | Yes |
| Link aggregation | Yes |
| Number of VLANs | 4096 |
Data transmission
| Specification | Value |
|---|---|
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 37.6 Gbit/s |
| Maximum data transfer rate | 37.6 Gbit/s |
Performance
| Specification | Value |
|---|---|
| Noise level | 46 dB |
| Mean time between failures (MTBF) | 300000 h |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 85 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Management platform | SSH, SNMPv3, 802.1x, TACACS+ |
| Data transfer rate | 13.1 Mbit/s |
| Dimensions (WxDxH) | 440 x 440 x 44.5 mm |
| Connectivity technology | Wired |
| Input frequency | 47/63 Hz |
| Networking features | 1000Mbps Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7.3 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, cUL, TUV |
