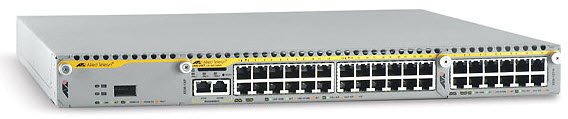

Allied Telesis AT-x900-24XT Managed L3+ Power over Ethernet (PoE) 1U Grey

Allied Telesis AT-x900-24XT Managed L3+ Power over Ethernet (PoE) 1U Grey

Model AT-x900-24XTPart no. AT-X900-24XT-P-60EAN 767035188867

55 specifications
  • Memory512 MB
  • Speed30 Gbit/s
  • ConnectivityWired
  • Type1U
  • Weight7.3 kg
  • ColourGrey
See all specifications

Overview

Memory
512 MB
Speed
30 Gbit/s
Connectivity
Wired
Type
1U
Weight
7.3 kg
Colour
Grey
Brand
Allied Telesis
Model
AT-x900-24XT
Part number
AT-X900-24XT-P-60
EAN / UPC
767035188867
Also known as
Allied Telesis AT-x900-24XT Managed L3+ Power over Ethernet (PoE) 1U Grey

Specifications

55 specifications in 15 groups

Management features

Switch typeManaged
Switch layerL3+
Quality of Service (QoS) supportYes
MIB supportRFC 1212, RFC 1213, RFC 1215, RFC 1239, RFC 1493, RFC 1623, RFC 2096, RFC 2790, RFC 2819, RFC 2863

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportYes
Port mirroringYes
Full duplexYes
Routing entries256000
Flow control supportYes
Number of VLANs4096

Data transmission

MAC address table16000 entries
Supported data transfer rates10/100/1000 Mbps
Switching capacity150 Gbit/s
Maximum data transfer rate30 Gbit/s
Jumbo frames supportYes

Security

MAC address filteringYes
SSH/SSL supportYes
Security algorithms802.1x RADIUS, SSH

Protocols

Management protocolsSNMP
Supported network protocolsIPv4/v6, RIPv2/v6, TCP, STP, RSTP, MSTP

Design

StackableYes
Form factor1U
Product colourGrey
SafetyUL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1

Performance

Memory typeSDRAM
Internal memory512 MB
Flash memory32 MB
Mean time between failures (MTBF)93700 h

Power

Power sourceAC
Input voltage100 - 240 V
Power consumption (typical)110 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes

Other features

Data transfer rate71.4 Mbit/s
Dimensions (WxDxH)440 x 440 x 44.5 mm
Connectivity technologyWired
Input frequency47/63 Hz
Networking featuresGigabit Ethernet
Size (imperial)48.3 cm (19")
Electromagnetic emissionsEN55022 A, FCC A, VCCI A
Electromagnetic immunityEN55024, EN61000-3-levels 2 & 3 XEM-1XP, XEM-12S
Weight (imperial)7.3 kg (16.1 lbs)

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)5 - 80%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m
Operating temperature (T-T)32 - 104 °F
Relative humidity5 - 80%
Heat dissipation375 BTU/h

Weight & dimensions

Weight7.3 kg

Packaging data

Package weight8.8 kg

Certificates

CertificationUL, cUL,TUV
