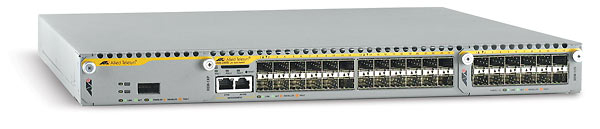

Allied Telesis AT-X900-24XS Managed L3
Model AT-X900-24XSPart no. AT-X900-24XS-80
37 specifications
- Memory512 MB
- Speed1 Gbit/s
- ConnectivityWired
- Weight7.3 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Memory
- 512 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 7.3 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-X900-24XS
- Part number
- AT-X900-24XS-80
- Also known as
- Allied Telesis AT-X900-24XS Managed L3
Specifications
37 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| IP routing | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Maximum data transfer rate | 1 Gbit/s |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Security algorithms | 3DES, DES |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Safety | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
Performance
| Specification | Value |
|---|---|
| Memory type | RAM |
| Internal memory | 512 MB |
| Flash memory | 64 MB |
| Mean time between failures (MTBF) | 249400 h |
Power
| Specification | Value |
|---|---|
| Power source | AC/DC |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 440 x 44.5 mm |
| Connectivity technology | Wired |
| Authentication method | TLS, TTLS, PEAP, SSH2 |
| Networking features | Gigabit Ethernet |
| Packet transfer speed | 1488000 pps |
| Power requirements | 100-240V, 47-63Hz |
| Electromagnetic emissions | EN55022 class A, FCC class A,VCCI class A |
| Electromagnetic immunity | EN55024, EN61000-3 lev. 2 |
| Technical features | VLAN |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3050 m |
| Heat dissipation | 652 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7.3 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, cUL,TUV, RoHS |
