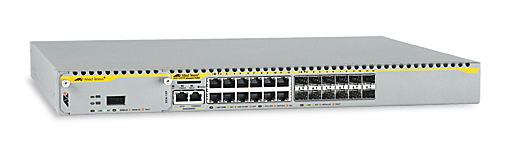

Allied Telesis AT-X900-12XT/S-60 Managed L3
Model AT-X900-12XT/S-60Part no. 990-001940-60
34 specifications
- Memory512 MB
- Speed84 Gbit/s
- ConnectivityWired
- Weight8.6 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity12
Overview
- Memory
- 512 MB
- Speed
- 84 Gbit/s
- Connectivity
- Wired
- Weight
- 8.6 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 12
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-X900-12XT/S-60
- Part number
- 990-001940-60
- Also known as
- Allied Telesis AT-X900-12XT/S-60 Managed L3
Specifications
34 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 12 |
Network
| Specification | Value |
|---|---|
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Link aggregation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 60 Gbit/s |
| Maximum data transfer rate | 84 Gbit/s |
| Jumbo frames support | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 64 MB |
| Mean time between failures (MTBF) | 103000 h |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 104 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Management platform | GUI, SSH, RMON, sFlow |
| Data transfer rate | 62.5 Mbit/s |
| Dimensions (WxDxH) | 440 x 350 x 44.5 mm |
| Connectivity technology | Wired |
| Input frequency | 47/63 Hz |
| Networking features | 1000Mbps Ethernet |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Operating temperature (T-T) | 32 - 104 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 8.6 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, cUL, TUV |
