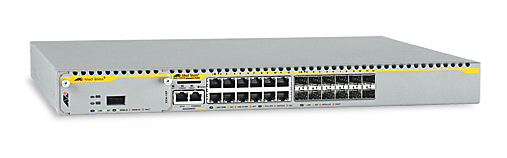

Allied Telesis AT-X900-12XT/S network switch Managed L3
Model AT-X900-12XT/S
30 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Weight5.3 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity12
- Full duplexYes
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 5.3 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 12
- Full duplex
- Yes
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-X900-12XT/S
- Part numbers
- AT-X900-12XT/S, AT-X900-12XT/S-00
- Also known as
- Allied Telesis AT-X900-12XT/S network switch Managed L3
Specifications
30 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 12 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| IP routing | Yes |
Data transmission
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1 Gbit/s |
Security
| Specification | Value |
|---|---|
| Security algorithms | 3DES, DES |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Safety | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 103000 h |
Power
| Specification | Value |
|---|---|
| Power source | AC/DC |
| Power consumption (typical) | 68 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 350 x 44.5 mm |
| Connectivity technology | Wired |
| Networking features | Gigabit Ethernet |
| Packet transfer speed | 1488000 pps |
| Power requirements | 100-240V +/-10%, 47-63Hz; 40-60V |
| Electromagnetic emissions | EN55022 class A, FCC class A, VCCI class A |
| Electromagnetic immunity | EN55024, EN61000-3 lev. 2 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3050 m |
| Heat dissipation | 232 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5.3 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, cUL,TUV RoHS |
What people say
Reviews & ratings
Allied Telesis AT-X900-12XT/S network switch Managed L3
No reviews yet
Be the first to tell others how Allied Telesis AT-X900-12XT/S network switch Managed L3 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Allied Telesis AT-X900-12XT/S network switch Managed L3
All network switch comparisons- Allied Telesis AT-X900-12XT/S network switch Managed L3 vsAllied Telesis AT-9000/28 network switch ManagedCompare specs
- Allied Telesis AT-X900-12XT/S network switch Managed L3 vsAllied Telesis AT-GS900/8 network switch Unmanaged Power over Ethernet (PoE)Compare specs

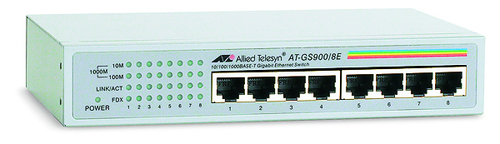

- Allied Telesis AT-X900-12XT/S network switch Managed L3 vsAllied Telesis AT-GS900/8E UnmanagedCompare specs
