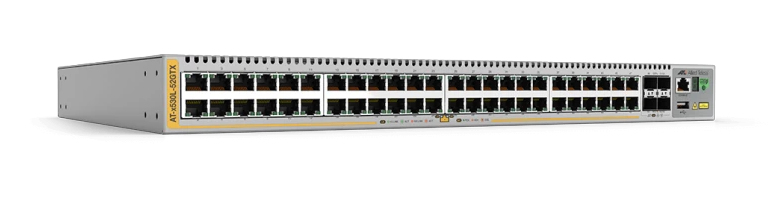

AT-X530L-52GTX-40 network switch Managed L3 Gigabit Ethernet (10/100/1000)
Model AT-X530L-52GTX-40EAN 767035217031
52 specifications
- Memory1024 MB
- Noise42 dB
- Weight5.2 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- 10G supportYes
Overview
- Memory
- 1024 MB
- Noise
- 42 dB
- Weight
- 5.2 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- 10G support
- Yes
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-X530L-52GTX-40
- Part number
- AT-X530L-52GTX-40
- EAN / UPC
- 767035217031
- Also known as
- Allied Telesis AT-X530L-52GTX-40 network switch Managed L3 Gigabit Ethernet (10/100/1000)
Specifications
52 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Traffic classification | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1v, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 130.9 Mpps |
| Latency (10-100 Mbps) | 8.34 µs |
| Latency (1 Gbps) | 5.27 µs |
| Latency (10 Gbps) | 1.67 µs |
| Jumbo frames support | Yes |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCPv6 client, DHCPv6 relay, DHCPv6 server |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Noise level | 42 dB |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 90 - 264 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 60 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 205 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 441 mm |
| Depth | 323 mm |
| Height | 44 mm |
| Weight | 5.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 577 mm |
| Package depth | 440 mm |
| Package height | 128 mm |
| Package weight | 7.1 kg |
