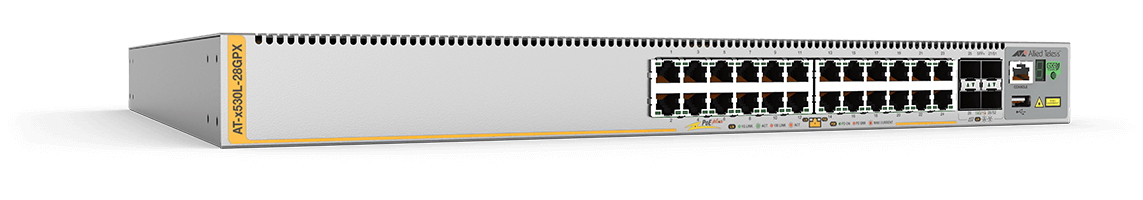

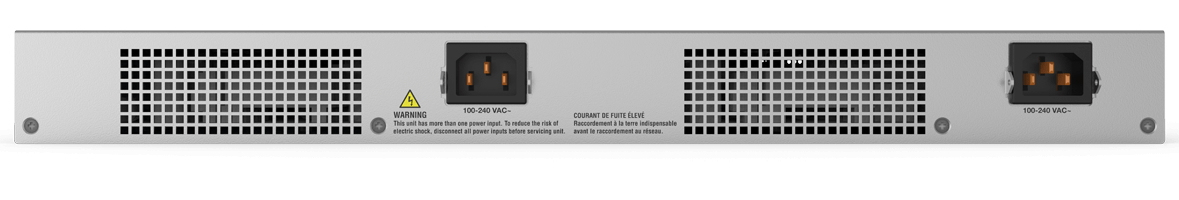

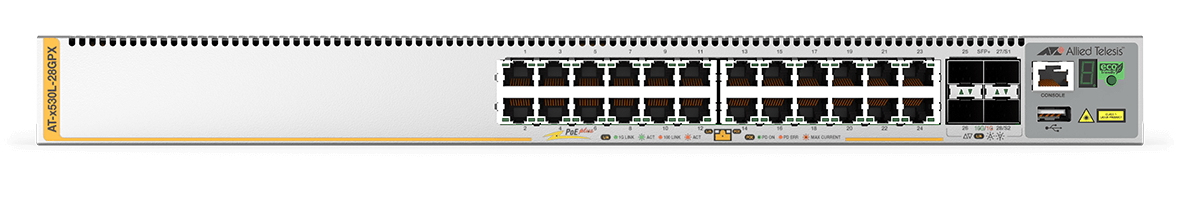

Allied Telesis AT-x530L-28GPX-50 Managed L3+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

AT-x530L-28GPX-50 Managed L3+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

Model AT-x530L-28GPX-50Part no. 990-006519-50EAN 767035217109

89 specifications

Memory1000 MB
Noise42 dB
Type1U
Weight6.2 kg
ColourGrey
Switch typeManaged

See all specifications

Overview

Memory: 1000 MB
Noise: 42 dB
Type: 1U
Weight: 6.2 kg
Colour: Grey
Switch type: Managed

Brand: Allied Telesis
Category: Network Switch
Model: AT-x530L-28GPX-50
Part number: 990-006519-50
EAN / UPC: 767035217109, 7670352171098
Also known as: Allied Telesis AT-x530L-28GPX-50 Managed L3+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

Specifications

89 specifications in 17 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3+
Quality of Service (QoS) support	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
Traffic classification	Yes
System event log	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	4

Network

Specification	Value
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Port mirroring	Yes
Full duplex	Yes
Policy-based routing	Yes
Auto-negotiation	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN, Protocol-based VLAN, Tagged VLAN
Number of VLANs	4094

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Forwarding rate	95.2 Mpps
Latency (1 Gbps)	3.98 µs
Latency (10 Gbps)	1.63 µs
Number of queues	8
Static route	Yes
Jumbo frames support	Yes
Packet buffer memory	3 MB

Security

Specification	Value
DHCP features	DHCP snooping, DHCPv6 client, DHCPv6 relay
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Authentication type	IEEE 802.1x, Network Access Control (NAC), RADIUS
BPDU filtering/protection	Yes
Loop protection	Yes
MAC address filtering	Yes
Password protection	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
SSH/SSL support	Yes
Security algorithms	3DES, AES, DES, MD5, SHA-1, SHA-2, SHA-256, SNMP, SNMPv2, SNMPv3, SSH, SSH-2

Multicast features

Specification	Value
Multicast support	Yes
Multicast features	Multicast forwarding
Multicast Listener Discovery (MLD) snooping	MLDv1, MLDv2

Protocols

Specification	Value
Routing protocols	RIP, RIP-2, RIPng
IPv4 & IPv6 features	Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 Telnet

Design

Specification	Value
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Grey
LED indicators	Yes
Electromagnetic compatibility	EN55032 class A, FCC class A, VCCI class A, ICES-003 class A, EN55024, EN61000-3-levels 2

Performance

Specification	Value
Memory type	DDR3-SDRAM
Internal memory	1000 MB
Flash memory	256 MB
Noise level	42 dB
Export Control Classification Number (ECCN)	5A992C

Power

Specification	Value
Power supply included	Yes
Number of power supply units	2
AC input voltage	90 - 264 V
AC input frequency	50 - 60 Hz
Power consumption (max)	890 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Active PoE
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	740 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m
Heat dissipation	3037 BTU/h

Weight & dimensions

Specification	Value
Width	441 mm
Depth	421 mm
Height	44 mm
Weight	6.2 kg

Packaging content

Specification	Value
Cables included	AC

Packaging data

Specification	Value
Package width	577 mm
Package depth	548 mm
Package height	153 mm
Package weight	8.4 kg

Certificates

Specification	Value
Certification	UL, cUL, RoHS

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
