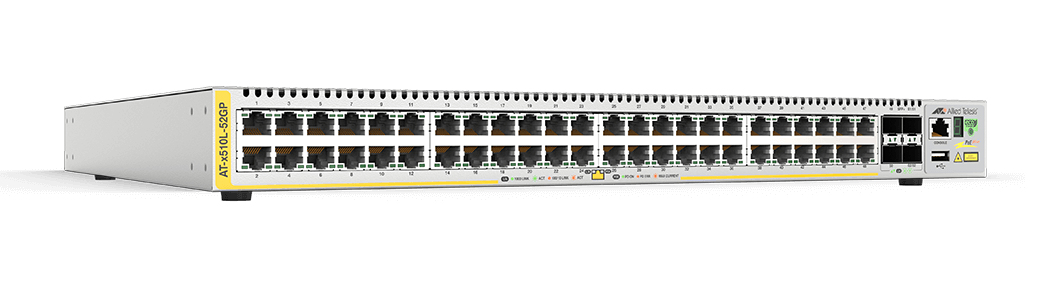

Allied Telesis AT-X510L-52GP-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Model AT-X510L-52GP-30
48 specifications
- Noise45 dB
- Weight5.7 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- Networking standardsIEEE 802.2, IEEE 802.3
Overview
- Noise
- 45 dB
- Weight
- 5.7 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Networking standards
- IEEE 802.2, IEEE 802.3
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-X510L-52GP-30
- Part number
- AT-X510L-52GP-30
- Also known as
- Allied Telesis AT-X510L-52GP-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Specifications
48 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.2, IEEE 802.3 |
| 10G support | Yes |
| Port mirroring | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 228 Gbit/s |
| Latency (10-100 Mbps) | 11.7 µs |
| Latency (1 Gbps) | 6.2 µs |
| Latency (10 Gbps) | 4.9 µs |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Flash memory | 64 MB |
| Noise level | 45 dB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 90 - 260 V |
| AC input frequency | 47/63 Hz |
| Power consumption (max) | 93 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 12 |
| Power over Ethernet plus (PoE+) ports quantity | 6 |
| Total Power over Ethernet (PoE) budget | 320 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 317 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 400 mm |
| Height | 44 mm |
| Weight | 5.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 570 mm |
| Package depth | 510 mm |
| Package height | 150 mm |
| Package weight | 7.7 kg |
What people say
Reviews & ratings
Allied Telesis AT-X510L-52GP-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
No reviews yet
Be the first to tell others how Allied Telesis AT-X510L-52GP-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Allied Telesis AT-X510L-52GP-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

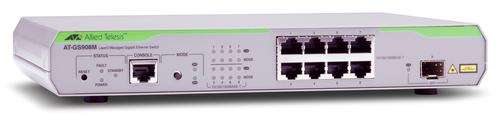

All network switch comparisons- Allied Telesis AT-X510L-52GP-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey vsAllied Telesis AT-GS908M-50 Managed L2 Gigabit Ethernet (10/100/1000) SilverCompare specs
