1000) Power over Ethernet (PoE) Grey

Model AT-x510L-28GP-10Part no. AT-X510L-28GP-10EAN 7670352033488

62 specifications

Noise45 dB
Weight5.2 kg
ColourGrey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24
10G supportNo

See all specifications

Overview

Noise: 45 dB
Weight: 5.2 kg
Colour: Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24
10G support: No

Brand: Allied Telesis
Category: Network Switch

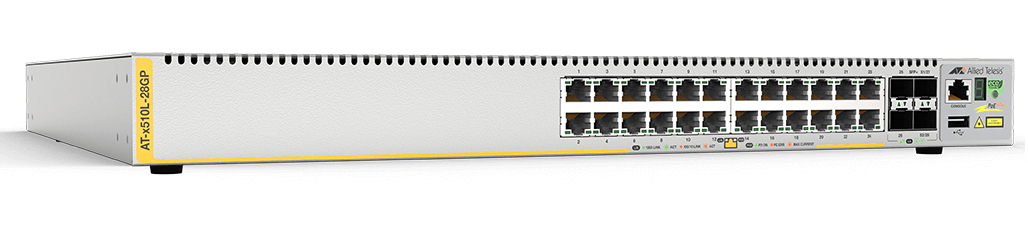

Model: AT-x510L-28GP-10
Part number: AT-X510L-28GP-10
EAN / UPC: 7670352033488
Also known as: Allied Telesis AT-x510L-28GP-10 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Specifications

62 specifications in 15 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
MIB support	RFC1212, RFC1213, RFC1227, RFC1239, RFC1724, RFC2011, RFC2012, RFC2013, RFC2096, RFC2819, RFC2863, RFC3418, RFC3621, RFC3636

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity	4
SFP+ module slots quantity	4
Console port	RJ-45
Power connector	DC-in jack

Network

Specification	Value
Networking standards	IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10GBASE-T, 100BASE-T, 1000BASE-T
Port mirroring	Yes
Broadcast storm control	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Throughput	95.2 Mpps
Latency (10-100 Mbps)	9.3 µs
Latency (1 Gbps)	3.9 µs
Latency (10 Gbps)	3 µs
Jumbo frames support	Yes
Packet buffer memory	2 MB

Security

Specification	Value
DHCP features	DHCP client
IGMP snooping	Yes
Security algorithms	EAP-TTLS, MD5, PEAP, SSL/TLS

Multicast features

Specification	Value
Multicast support	Yes

Protocols

Specification	Value
Management protocols	Telnet, SMTP, DHCP, TLS, SSH
Supported network protocols	SNTP, NTP

Design

Specification	Value
Rack mounting	Yes
Stackable	Yes
Product colour	Grey
LED indicators	Yes
Safety	UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1

Performance

Specification	Value
Flash memory	64 MB
Noise level	45 dB

Power

Specification	Value
Power consumption (typical)	67 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	12
Power over Ethernet plus (PoE+) ports quantity	6
Total Power over Ethernet (PoE) budget	290 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Non-operating altitude	0 - 3048 m
Heat dissipation	229 BTU/h

Weight & dimensions

Specification	Value
Width	440 mm
Depth	400 mm
Height	44 mm
Weight	5.2 kg

Packaging data

Specification	Value
Package width	570 mm
Package depth	510 mm
Package height	150 mm
Package weight	7.2 kg

Certificates

Specification	Value
Certification	UL, cUL, TUV
