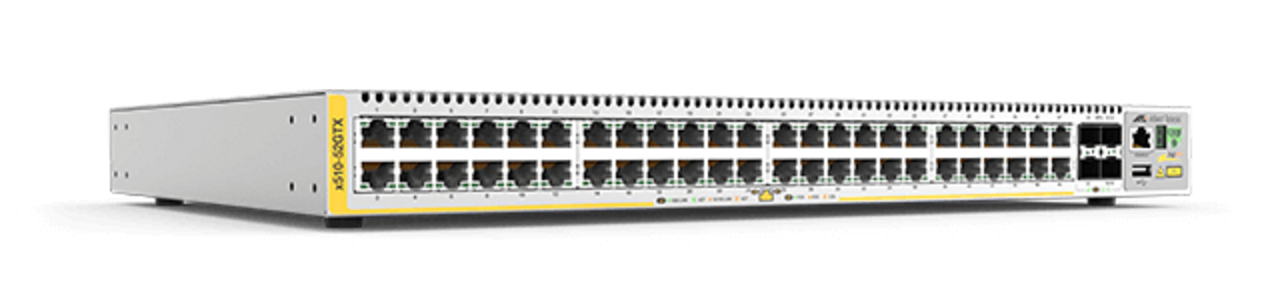

Allied Telesis AT-x510-52GTX 1020R
Model AT-x510-52GTX 1020RPart no. 1020REAN 4511427076456
61 specifications
- Noise45 dB
- Type1U
- Weight5.2 kg
- ColourStainless steel
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
Overview
- Noise
- 45 dB
- Type
- 1U
- Weight
- 5.2 kg
- Colour
- Stainless steel
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-x510-52GTX 1020R
- Part number
- 1020R
- EAN / UPC
- 4511427076456
- Also known as
- Allied Telesis AT-x510-52GTX 1020R Managed L3 Gigabit Ethernet (10/100/1000) 1U Stainless steel
Specifications
61 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Traffic classification | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 228 Gbit/s |
| Throughput | 130.9 Mpps |
| Latency (10-100 Mbps) | 11.7 µs |
| Latency (1 Gbps) | 6.2 µs |
| Latency (10 Gbps) | 4.8 µs |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 13000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 3DES, 802.1x RADIUS, AES, HTTPS, LEAP, MD5, PEAP, SHA-1, SHA-2, SSH, SSH-2, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, Telnet |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Stainless steel |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Physical stacking (units) | 4 |
| Noise level | 45 dB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 90 - 260 V |
| AC input frequency | 47/63 Hz |
| Power consumption (max) | 86 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 293 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 325 mm |
| Height | 44 mm |
| Weight | 5.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 7.2 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL, TUV RoHS 1020R |
What people say
Reviews & ratings
Allied Telesis AT-x510-52GTX 1020R
No reviews yet
Be the first to tell others how Allied Telesis AT-x510-52GTX 1020R works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Allied Telesis AT-x510-52GTX 1020R
All network switch comparisons- Allied Telesis AT-x510-52GTX 1020R vsAllied Telesis AT-GS910/8E 2330RCompare specs
- Allied Telesis AT-x510-52GTX 1020R vsAllied Telesis AT-GS910/5 2313RCompare specs
- Allied Telesis AT-x510-52GTX 1020R vsAllied Telesis AT-x510-52GPX 1022RCompare specs
- Allied Telesis AT-x510-52GTX 1020R vsAllied Telesis AT-x510-28GSX 1023RCompare specs
- Allied Telesis AT-x510-52GTX 1020R vsDell S-Series S4112F-ON Managed L2+/L3 1UCompare specs
- Allied Telesis AT-x510-52GTX 1020R vsNETGEAR 52-Port PoE Gigabit Ethernet Smart Switch (GS752TPP)Compare specs
- Allied Telesis AT-x510-52GTX 1020R vsYamaha SWX2200-8POE network switch L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) BlackCompare specs

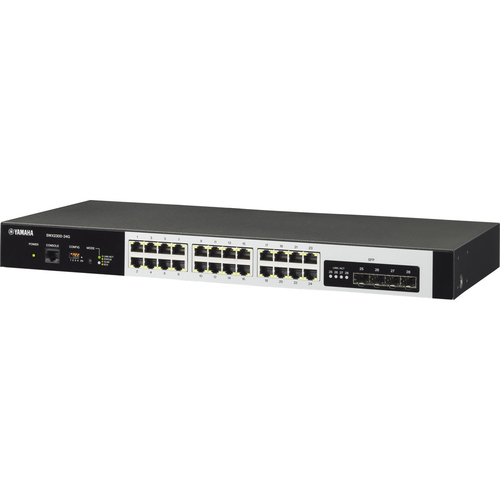

- Allied Telesis AT-x510-52GTX 1020R vsYamaha SWX2300-24G network switch Gigabit Ethernet (10/100/1000) BlackCompare specs
