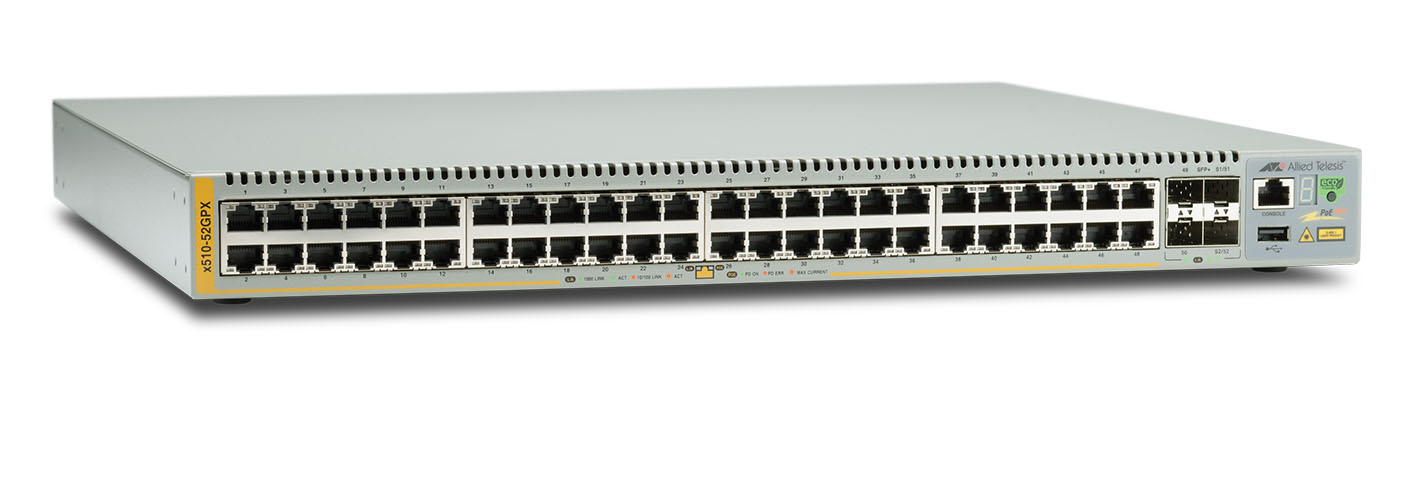

Allied Telesis AT-x510-52GPX-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Allied Telesis AT-x510-52GPX-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Model AT-x510-52GPX-50Part no. 990-003629-50EAN 767035198040

58 specifications

Memory512 MB
Weight6.2 kg
ColourGrey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity48
Port mirroringYes

See all specifications

Overview

Memory: 512 MB
Weight: 6.2 kg
Colour: Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 48
Port mirroring: Yes

Brand: Allied Telesis
Category: Network Switch
Model: AT-x510-52GPX-50
Part number: 990-003629-50
EAN / UPC: 767035198040
Also known as: Allied Telesis AT-x510-52GPX-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Specifications

58 specifications in 15 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	4
Power connector	DC-in jack

Network

Specification	Value
Networking standards	IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T, 1000BASE-TX
Port mirroring	Yes
Full duplex	Yes
IP routing	Yes
Flow control support	Yes
Virtual LAN features	Private VLAN, Tagged VLAN, Port-based VLAN
Number of VLANs	4094

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	228 Gbit/s
Throughput	130.9 Mpps
Latency (10-100 Mbps)	68 µs
Number of queues	8
Packet buffer memory	4 MB

Security

Specification	Value
DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Yes
Authentication	MAC-based authentication
BPDU filtering/protection	Yes
Loop protection	Yes
MAC address filtering	Yes
SSH/SSL support	Yes

Multicast features

Specification	Value
Multicast support	Yes

Design

Specification	Value
Rack mounting	Yes
Stackable	Yes
Product colour	Grey
LED indicators	Yes
Safety	UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1

Performance

Specification	Value
Internal memory	512 MB
Flash memory	64 MB

Power

Specification	Value
AC input voltage	90 - 260 V
AC input frequency	47/63 Hz
Power consumption (max)	93 W
Power plug type	Type B

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	48

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m
Heat dissipation	317 BTU/h

Weight & dimensions

Specification	Value
Width	440 mm
Depth	400 mm
Height	44 mm
Weight	6.2 kg

Packaging data

Specification	Value
Package weight	8.2 kg

Certificates

Specification	Value
Certification	EN55022 class A, FCC class A, VCCI class A, ICES-003 class A, EN55024, EN61000-3-levels 2 (Harmonics), UL, cUL, TUV, RoHS 1022R

Logistics data

Specification	Value
Country of origin	China
