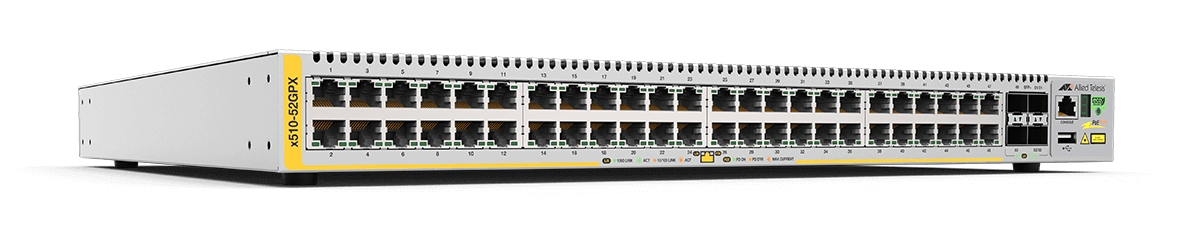

Allied Telesis AT-X510-52GPX-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Allied Telesis AT-X510-52GPX-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Model AT-X510-52GPX-30EAN 767035198026

57 specifications

Memory512 MB
Weight6.2 kg
ColourGrey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity48
10G supportNo

See all specifications

Overview

Memory: 512 MB
Weight: 6.2 kg
Colour: Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 48
10G support: No

Brand: Allied Telesis
Category: Network Switch
Model: AT-X510-52GPX-30
Part number: AT-X510-52GPX-30
EAN / UPC: 767035198026
Also known as: Allied Telesis AT-X510-52GPX-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Specifications

57 specifications in 15 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	48
Installed SFP+ modules quantity	0
SFP+ module slots quantity	4

Network

Specification	Value
Networking standards	IEEE 802.1AX, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T, 1000BASE-TX
Port mirroring	Yes
Full duplex	Yes
IP routing	Yes
Flow control support	Yes
Virtual LAN features	Private VLAN, Tagged VLAN, Port-based VLAN
Number of VLANs	4094

Optical fiber

Specification	Value
Switching optical modules type	100 Gigabit Ethernet

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	228 Gbit/s
Throughput	130.9 Mpps
Latency (10-100 Mbps)	68 µs
Number of queues	8
Packet buffer memory	4 MB

Security

Specification	Value
DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Yes
Authentication	MAC-based authentication
BPDU filtering/protection	Yes
Loop protection	Yes
MAC address filtering	Yes
SSH/SSL support	Yes
Security algorithms	SNMP

Multicast features

Specification	Value
Multicast support	Yes

Design

Specification	Value
Rack mounting	Yes
Stackable	Yes
Product colour	Grey
Safety	UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1

Performance

Specification	Value
Internal memory	512 MB
Flash memory	64 MB

Power

Specification	Value
AC input voltage	90 - 260 V
AC input frequency	47/63 Hz
Power consumption (max)	93 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	48

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m
Heat dissipation	317 BTU/h

Weight & dimensions

Specification	Value
Width	440 mm
Depth	400 mm
Height	44 mm
Weight	6.2 kg

Packaging data

Specification	Value
Package weight	8.2 kg

Certificates

Specification	Value
Certification	EN55022 class A, FCC class A, VCCI class A, ICES-003 class A, EN55024, EN61000-3-levels 2 (Harmonics), UL, cUL, TUV, RoHS
