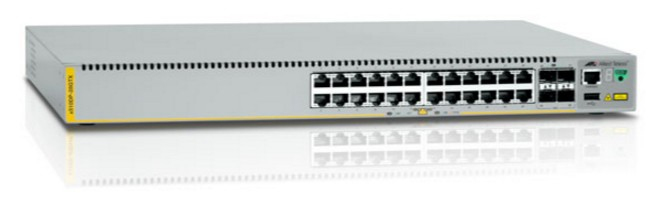

Allied Telesis AT-X510-28GTX-10 network switch Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey
Model AT-X510-28GTX-10EAN 767035197760
71 specifications
- Noise45 dB
- Type1U
- Weight4.3 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Noise
- 45 dB
- Type
- 1U
- Weight
- 4.3 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-X510-28GTX-10
- Part number
- AT-X510-28GTX-10
- EAN / UPC
- 767035197760, 7670351977608
- Also known as
- Allied Telesis AT-X510-28GTX-10 network switch Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey
Specifications
71 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Traffic classification | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Policy-based routing | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Stacked VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 128 Gbit/s |
| Throughput | 95.2 Mpps |
| Latency (10-100 Mbps) | 9.3 µs |
| Latency (1 Gbps) | 3.9 µs |
| Latency (10 Gbps) | 3 µs |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 13000 |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP relay, DHCPv6 relay, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 3DES, 802.1x RADIUS, AES, DES, HTTPS, MD5, PEAP, RSA, SHA-1, SHA-2, SSH, SSH-2, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, Telnet |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Physical stacking (units) | 4 |
| Memory type | SDRAM |
| Noise level | 45 dB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 90 - 260 V |
| AC input frequency | 47/63 Hz |
| Power consumption (max) | 52 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 177 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 325 mm |
| Height | 44 mm |
| Weight | 4.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 6.3 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL, TUV RoHS EN55024, EN61 |
