Allied Telesis AT-x510-28GTX Managed L3 Gigabit Ethernet (10/100/1000) 1U White
Model AT-x510-28GTXPart no. AT-X510-28GTX-30EAN 767035197784
67 specifications
- Noise45 dB
- Type1U
- Weight4.3 kg
- ColourWhite
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Noise
- 45 dB
- Type
- 1U
- Weight
- 4.3 kg
- Colour
- White
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-x510-28GTX
- Part numbers
- AT-X510-28GTX-30, AT-X510-28GTX
- EAN / UPC
- 767035197784
- Also known as
- Allied Telesis AT-x510-28GTX Managed L3 Gigabit Ethernet (10/100/1000) 1U White
Specifications
67 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Traffic classification | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN |
Data transmission
| Specification | Value |
|---|---|
| Switching capacity | 128 Gbit/s |
| Throughput | 95.2 Mpps |
| Latency (10-100 Mbps) | 9.3 µs |
| Latency (1 Gbps) | 3.9 µs |
| Latency (10 Gbps) | 3 µs |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 13000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 3DES, 802.1x RADIUS, AES, DES, HTTPS, MD5, PEAP, RSA, SHA-1, SHA-2, SSH, SSH-2, SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, Telnet |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | White |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Physical stacking (units) | 4 |
| Noise level | 45 dB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 90 - 260 V |
| AC input frequency | 47/63 Hz |
| Power consumption (max) | 52 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 177 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 325 mm |
| Height | 44 mm |
| Weight | 4.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 6.3 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL, TUV RoHS EN55024, EN61000-3-levels 2 / 3 EN55022, FCC, VCCI, ICES-003 |
What people say
Reviews & ratings
Allied Telesis AT-x510-28GTX Managed L3 Gigabit Ethernet (10/100/1000) 1U White
No reviews yet
Be the first to tell others how Allied Telesis AT-x510-28GTX Managed L3 Gigabit Ethernet (10/100/1000) 1U White works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Allied Telesis AT-x510-28GTX Managed L3 Gigabit Ethernet (10/100/1000) 1U White

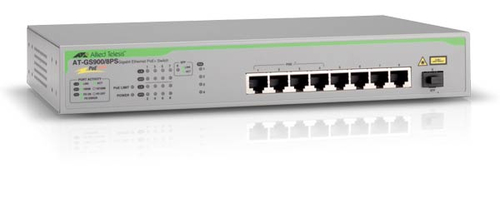

All network switch comparisons- Allied Telesis AT-x510-28GTX Managed L3 Gigabit Ethernet (10/100/1000) 1U White vsAllied Telesis AT-GS900/8PS Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 19U GreyCompare specs

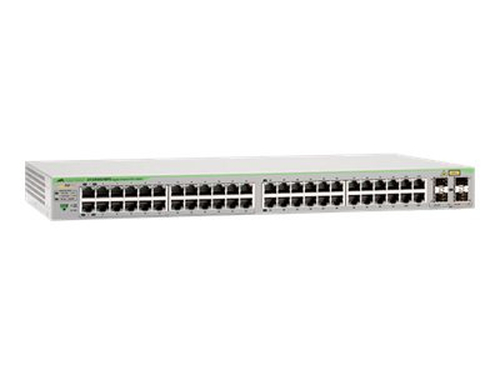

- Allied Telesis AT-x510-28GTX Managed L3 Gigabit Ethernet (10/100/1000) 1U White vsAllied Telesis AT-GS950/48PS Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Green, GreyCompare specs
