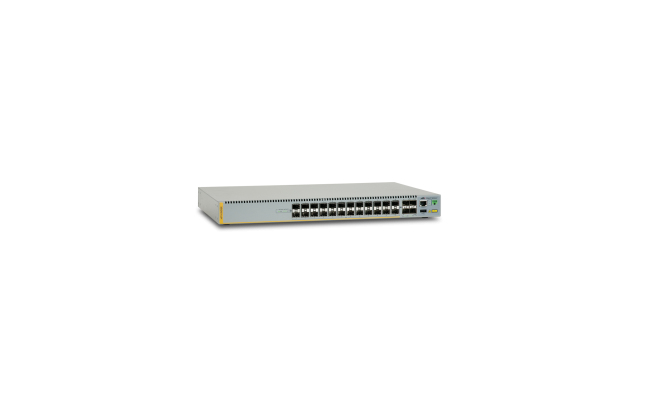

Allied Telesis AT-x510-28GSX-80 Managed L3 Grey
Model AT-x510-28GSX-80Part no. 990-003626-80EAN 767035197999
38 specifications
- Noise44 dB
- Weight5.3 kg
- ColourGrey
- Switch typeManaged
- Installed SFP modules quantity0
- 10G supportYes
Overview
- Noise
- 44 dB
- Weight
- 5.3 kg
- Colour
- Grey
- Switch type
- Managed
- Installed SFP modules quantity
- 0
- 10G support
- Yes
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-x510-28GSX-80
- Part number
- 990-003626-80
- EAN / UPC
- 767035197999, 7670351979992
- Also known as
- Allied Telesis AT-x510-28GSX-80 Managed L3 Grey
Specifications
38 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 24 |
| SFP+ module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1x, IEEE 802.3, IEEE 802.3ac |
| 10G support | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Throughput | 95.2 Mpps |
| Latency (1 Gbps) | 3.9 µs |
| Latency (10 Gbps) | 3 µs |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Grey |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Noise level | 44 dB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 90 - 260 V |
| Power consumption (max) | 66 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Heat dissipation | 225 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 480 mm |
| Height | 44 mm |
| Weight | 5.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 7.3 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
