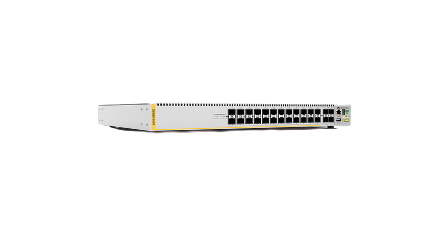

AT-X510-28GSX network switch Managed L3 Gigabit Ethernet (10/100/1000) Grey
Model AT-X510-28GSX
60 specifications
- Memory512 MB
- Weight6.2 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Memory
- 512 MB
- Weight
- 6.2 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- Allied Telesis
- Category
- Network Switch
- Model
- AT-X510-28GSX
- Part number
- AT-X510-28GSX
- Also known as
- Allied Telesis AT-X510-28GSX network switch Managed L3 Gigabit Ethernet (10/100/1000) Grey
Specifications
60 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 24 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1AX, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3au, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Policy-based routing | Yes |
| Flow control support | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN, Tagged VLAN |
| Number of VLANs | 4094 |
Optical fiber
| Specification | Value |
|---|---|
| Switching optical modules type | 100 Gigabit Ethernet |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 228 Gbit/s |
| Throughput | 130.9 Mpps |
| Latency (10-100 Mbps) | 68 µs |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 13 |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCPv6 relay |
| Access Control List (ACL) | Yes |
| Authentication | MAC-based authentication |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Security algorithms | SNMP |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Memory type | RDRAM |
| Internal memory | 512 MB |
| Flash memory | 64 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 90 - 260 V |
| AC input frequency | 47/63 Hz |
| Power consumption (max) | 93 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Heat dissipation | 317 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 400 mm |
| Height | 44 mm |
| Weight | 6.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 8.2 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | EN55022 class A, FCC class A, VCCI class A, ICES-003 class A, EN55024, EN61000-3-levels 2 (Harmonics), UL, cUL, TUV, RoHS |
