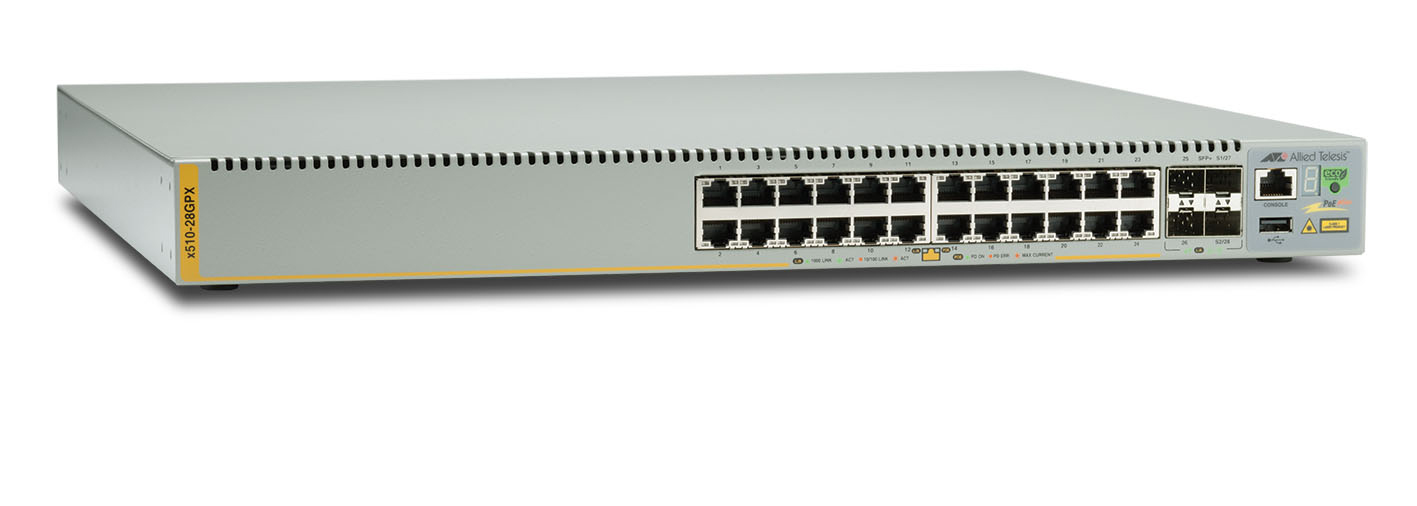

Allied Telesis AT-x510-28GPX-50 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Allied Telesis AT-x510-28GPX-50 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Model AT-x510-28GPX-50Part no. 990-003617-50EAN 767035197869

61 specifications
  • Memory512 MB
  • Noise45 dB
  • Weight5.8 kg
  • ColourGrey
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity24
See all specifications

Overview

Memory
512 MB
Noise
45 dB
Weight
5.8 kg
Colour
Grey
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
24
Brand
Allied Telesis
Model
AT-x510-28GPX-50
Part number
990-003617-50
EAN / UPC
767035197869
Also known as
Allied Telesis AT-x510-28GPX-50 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Specifications

61 specifications in 16 groups

Management features

Switch typeManaged
Quality of Service (QoS) supportYes
Web-based managementYes
MIB supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Fast Ethernet (copper) ports quantity0
Gigabit Ethernet (copper) ports quantity24
SFP/SFP+ slots quantity0
SFP+ module slots quantity4
Fiber ports quantity4
Fiber optic connectorSFP
Console portRJ-45
Power connectorDC-in jack

Network

Networking standardsIEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportYes
Copper ethernet cabling technology1000BASE-T, 100BASE-T, 10BASE-T
Port mirroringYes
Full duplexYes
Broadcast storm controlYes
Flow control supportYes
Link aggregationYes
Rate limitingYes
VLAN supportYes
Number of VLANs4094

Optical fiber

Fiber ethernet cabling technology1000BASE‑LX, 1000BASE‑SX, 1000BASE‑ZX, 100BASE-BX, 100BASE-FX, 10GBASE-LR, 10GBASE-SR

Data transmission

MAC address table16000 entries
Switching capacity128 Gbit/s
Throughput95.2 Mpps
Latency (1 Gbps)4.4 µs
Latency (10 Gbps)3.1 µs
Jumbo frames supportYes
Packet buffer memory2 MB

Security

DHCP featuresDHCPv6 client, DHCP server, DHCPv6 relay, DHCP client
IGMP snoopingYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableYes
Product colourGrey
LED indicatorsYes

Performance

Memory typeDDR-SDRAM
Internal memory512 MB
Flash memory64 MB
Noise level45 dB

Power

AC input voltage90 - 260 V
AC input frequency47/63 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity0
Power over Ethernet plus (PoE+) ports quantity24

Other features

Power LEDYes

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%

Weight & dimensions

Width440 mm
Depth440 mm
Height44 mm
Weight5.8 kg

Packaging content

Quick start guideYes
User guideYes

Packaging data

Package weight7.8 kg
